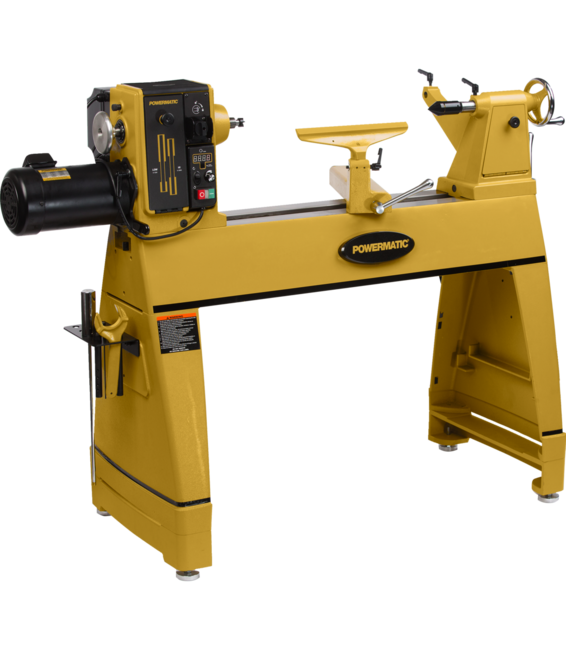

3520C Lathe 2HP 220V 1PH w/risers

3520C Lathe, 2HP, 1PH, 220V

Features & Benefits

  • Digital indexing readout simplifies the indexing process for added precision
  • Magnetic-backed moveable control box for customizable versatility and safety
  • Adjustable risers blocks for 4 inches of height adjustment,allowing maximum comfort when turning
  • Upgraded banjo features a non-marring, pinch style clamp for solid tool rest placement
  • Extended spindle nose increased access to the work piece
  • Able to maintain speeds as low as 15 RPM
  • Tailstock incorporates anti-rotation key and Acme threads for smoother operation and increased longevity
  • Self-locating ergonomic spindle lock design for easy, one handed operation
  • Fully enclosed VFD for increased user protection
  • Main power disconnect switch located on rear of headstock
UPC731325713213
SAP Material GroupIW063
SAP Material TypeZFIN
SAP Warranty5 Year
Model Number3520C
SAP OwnerMWW
SAP Division3
SAP Country of OriginTW
SAP Product CategoryWW
SAP Rounding ProfileNA
SAP Height0.000
SAP Length0.000
SAP Volume0.579
SAP Width0.000
Prop 65Cancer and Reproductive Harm
Motor Phase3
Speed Range15-1200, 40-3200
Spindle Threads (In. x TPI)1-1/4 x 8
Centerline of Spindle to Floor (In.)40-5/8 without Risers
Spindle Bore5/8
Headstock MovementFull Length of Bed
Wiring RemarksSingle Phase ONLY
Prewired Voltage (V.)230 Only
Spindle TaperMT-2
Number of Indexing Positions48
Swing Over Tool Rest Base (In.)15-3/4
Motor Power (HP)2
Outboard Turning38
Distance Between Centers (In.)36 w/dual bearing center
Motor Current (Amps)6.2
Spindle SpeedsLow 15-1200/High 40-3200
Ram Travel Quill Travel4-1/2"
Bed ConstructionCast Iron
Recommended Circuit Size (Amps.)20
Size (In.)20
Quill TaperMT-2
Style (Type)Leg Stand
Tailstock Bore3/8
Outboard External Threads (In. x TPI)1-3/16-18UNC
Swing Over Bed (In.)20
Motor Voltage (V.)230 Only
Bed Gap (In.)2-1/2

Part #: 1353001

Price: $4,499.99
