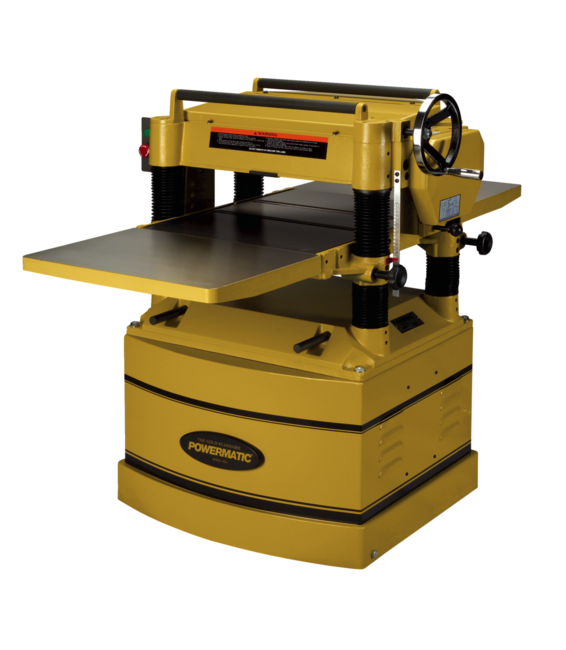

209HH PLNR, 5HP 1PH 230V
209HH PLNR, 5HP 1PH 230V209HH PLNR, 5HP 1PH 230V209HH PLNR, 5HP 1PH 230V

This heavy duty planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20" planing capacity will handle the most demanding work. The helical cutterhead provides quieter operation and finer finishing than conventional systems, and the 100 four-sided carbide knife inserts seat themselves without requiring a set-up gauge. The 5" dust port connects easily to any dust collector. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.

209HH, 20" Planer, 5HP 1PH 230V

Features & Benefits

  • Cast iron head
  • Cast iron table with extensions creates a big 55-1/2" x 20" working area
  • Chip breaker and pressure bar assists to reduce snipe
  • Chrome-plated, ergonomic handwheel makes adjustments smooth and easy
  • Feed rollers and cutterhead supported by full cast iron head assembly
  • Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
  • Fully enclosed base cabinet with integrated casters for shop mobility
  • Serrated steel infeed roller and smooth steel outfeed roller allows for 1/8" maximum depth of cut and trouble-free operation
  • The helical cutterhead with 100 four-sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems
SAP EAN Number Code (UPC)662755915420
Model Number209HH
SAP Base Unit of MeasureEA
SAP Commodity Code8465.92.0037
SAP Country of OriginTaiwan
Warranty5 Year
SAP Delivery PlantJNA
SAP Unit of DimensionIN
SAP Unit of DimensionIN
SAP Unit of DimensionIN
SAP Gross Weight890
SAP Weight UnitLBS
SAP Net weight800
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products1791212,708520
Cutterhead Diameter (In.)3-3/16
Cutterhead Speed (RPM)5000.0000
Dust Collection Minimum CFM Required (CFM)900
End User SellableNo
Item Display Order5.0000
Maximum Depth of Cut (In.)3/32
Maximum Full Width Depth of Cut (In.)3/32
Maximum Planing Thickness (In.)8
Maximum Planing Width (In.)20
Minimum Planing Length (In.)6-3/4
Motor Phase1
Motor Power (HP)5
Prop 65Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)40
Style (Type)Floor
Table Size (L x W) (In.)25-3/4 x 20
Table Support4 Column
Type of CutterheadHELICAL
Whitepapers Asset Collection[1791315_wp_en_pdf],[1791315_whitepaper_pdf]
Suggested Products1791213,1791261,1791267,1791268,1791296,1791297,1791303,1791316

Part #: 1791315

Price: $5,999.99
