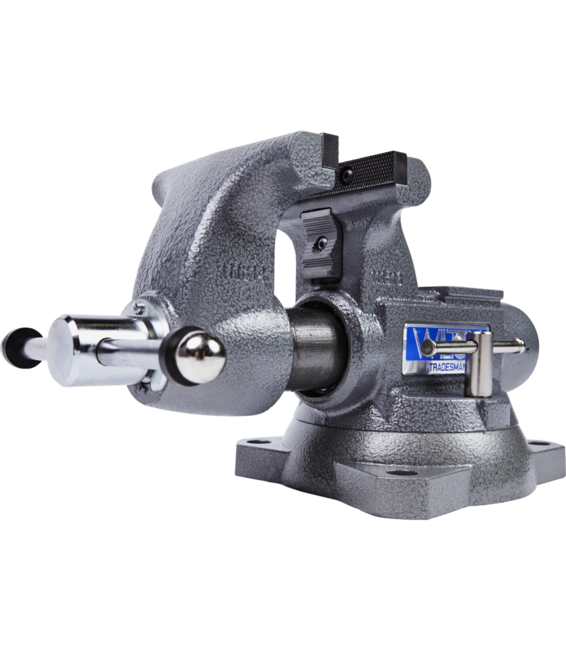

1755 WILTON TRADEMAN VISE 5-1/2IN
1755 WILTON TRADEMAN VISE 5-1/2IN1755 WILTON TRADEMAN VISE 5-1/2IN1755 WILTON TRADEMAN VISE 5-1/2IN
1755 WILTON TRADEMAN VISE 5-1/2IN1755 WILTON TRADEMAN VISE 5-1/2IN1755 WILTON TRADEMAN VISE 5-1/2IN
1755 WILTON TRADEMAN VISE 5-1/2IN1755 WILTON TRADEMAN VISE 5-1/2IN1755 WILTON TRADEMAN VISE 5-1/2IN
1755 WILTON TRADEMAN VISE 5-1/2IN1755 WILTON TRADEMAN VISE 5-1/2IN1755 WILTON TRADEMAN VISE 5-1/2IN

The Tradesman round channel vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut the Tradesman round channel vise nut is anchored at the rear which provides straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly keeping debris out and lubrication in for a lifetime of smooth operation. For ultimate versatility, the Tradesman vise is equipped with main jaws, pipe jaws and a machined anvil work surface.

Tradesman 1755 Vise, 5-1/2" Jaw Width, 5" Jaw Opening, 3-3/4" Throat Depth

Features & Benefits

  • 60,000 PSI ductile iron body, jaw, and base is virtually indestructible with 2X the strength of gray cast iron
  • Enclosed design keeps lubrication in and contaminants out for a lifetime of smooth operation
  • Large anvil designed to take a beating while forming and shaping materials
  • Longer spindle nut ensures smooth movement and a stronger straight-line pull
  • Machined steel serrated jaws with phosphate coating provide increased durability and an extended life of use
  • Precision slide bar eliminates movement in the front jaw regardless of opened distance
  • Redesigned spindle assembly improves overall product life and durability
  • Reversible jaw inserts are serrated on one side for extra grip and smooth on the other to prevent marring on softer surfaces
SAP EAN Number Code (UPC)731325753967
Model Number1755
SAP Base Unit of MeasureEA
SAP Commodity Code8205.70.0060
SAP Country of OriginTaiwan
WarrantyLifetime
SAP Delivery PlantJNA
SAP Length15.5
SAP Unit of DimensionIN
SAP Height8.6
SAP Unit of DimensionIN
SAP Width7.8
SAP Unit of DimensionIN
SAP Gross Weight51.5
SAP Weight UnitLBS
SAP Net weight46.8
SAP Weight UnitLBS
SAP Transportation GroupParcel
Accessories Products14871,14872,14873,21111,63185,63203
End User SellableNo
Item Display Order20.0000
Jaw Depth (In.)1/2
Jaw Height (In.)3/4
Jaw Width (In.)5-1/2
Number of Mounting Points4
Opening Capacity Max (In.)5
Prop 65Cancer
Throat Depth (In.)3-3/4
Type of Base360 Degree Swivel

Part #: 28806

Price: $761.99
