2400S-48C, 48" REGULAR DUTY F-CLAMP COPP

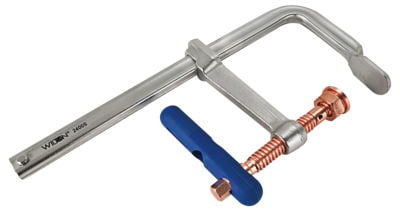

2400S-48C, 48" REGULAR DUTY F-CLAMP COPPER

Features & Benefits

  • Spark-Duty copper-plated spindle extends the life of the clamp by protecting the spindle and pad from harmful welding spatter.
  • Quick-Twist Pads are simple and fast to replace with a V-Groove pad included in every box, or optional serrated pad.
  • Drop forged arm provides minimal flex under heavy work loads.
UPC731325228373
SAP Material Group140P
SAP Material TypeZFIN
SAP WarrantyLifetime
Model Number2400S-48C
SAP OwnerWWH
SAP Division96
SAP Country of OriginTW
SAP Product CategoryWH
SAP Rounding ProfileNA
SAP Height2.000
SAP Length55.000
SAP Volume0.509
SAP Width8.000
Prop 65Cancer and Reproductive Harm
Quick-Twist V-Groove Pad Stock Number2909302
Quick-Twist Plain Pad Stook Number2909102
Quick-Twist Serrated Pad Stock Number2909202
Nut Stock Number1701702
Spindle and T-Handle with Spring Pin Stock Number1701602
Joint with Spring Pin Stock Number1701502
Spindle Diameter3/4
Clamping Capacity (in)48
Nominal Rail Size (in)1-3/16 x 19/32
Clamping Force (lbs)2660
Quick-Twist PadsYes
Throat Depth (in)5-1/2

Part #: 86460

Price: $235.99
