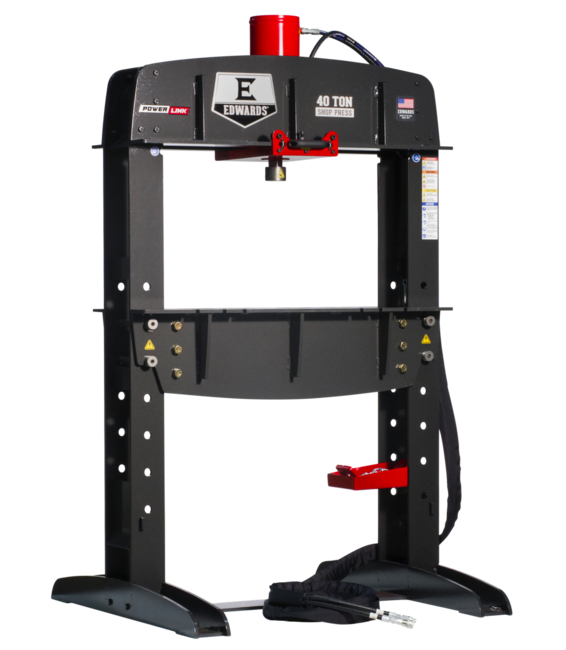

The 40 Ton Shop Press is rugged and economical. With a rolling cylinder, pressure gauge, open-sided design, and hand/jog controls, it is an easy to use, powerful machine. Able to accept standard & custom tooling the smooth and precise pressure is perfect for any shop. This Shop Press package includes a Portable Power Unit and is ready to PLUG IN & POWER UP.

40 Ton Shop Press and Portable Power Unit 230V, 3Ph

Features & Benefits

  • 20' quick-connect hoses for simple "plug & play" operation
  • Accepts a variety of standard and custom tooling
  • Easy-to-use hand/jog controls with integrated E-Stop
  • Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket
  • Open-sided design allows longer material to pass through the frame
  • Pressure gauge provides accurate measurements allowing for easy repeatable parts production
  • Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate (included)
  • Rolling cylinder provides maximum adaptability
SAP EAN Number Code (UPC)731325581270
Model NumberHAT4020
SAP Country of OriginUSA
Warranty1 Year
SAP Length78
SAP Height126
SAP Width102
SAP Gross Weight1830
SAP Net weight1793
Accessories ProductsPR135,PRB06,PRB12,PRB18,PRB24,PRB32
End User SellableNo
Gross Weight (Lbs)1830.0000
Gross Weight (Lbs) (Unit)Pound
Item Display Order11.0000
Minimum Ram Speed (In./Sec).517
Net Weight (Lbs.)1793.0000
Net Weight (Lbs.) (Unit)Pound
Product Dimensions (In.)48 x 48 x 79
Prop 65Cancer and Reproductive Harm
Rating (Tons)40.0000
Rating (Tons) (Unit)Ton
Steel Frame Thickness (In.)1/2
Stroke (In.)12-1/4
Weight (Lbs.)1800.0000
Weight (Lbs.) (Unit)Pound
Work Table (In.)38 x 40-1/2

Part #: HAT4020

Price: $13,009.00
