60T SHOP PRESS W PLC & PORTABLE POWER

Shop Presses

<< Back

60T  SHOP PRESS W  PLC & PORTABLE POWER
60T  SHOP PRESS W  PLC & PORTABLE POWER60T  SHOP PRESS W  PLC & PORTABLE POWER60T  SHOP PRESS W  PLC & PORTABLE POWER
60T  SHOP PRESS W  PLC & PORTABLE POWER60T  SHOP PRESS W  PLC & PORTABLE POWER60T  SHOP PRESS W  PLC & PORTABLE POWER

This 60 Ton Shop Press includes a Programmable Logic Control (PLC) to maximize your efficiency with shorter cycle times - over a 50% time savings. With a large work table area, this Shop Press accepts both standard and custom tooling to press bearings, bend metal or straighten a part. The rolling cylinder, open-sided design, and electric foot pedal make this machine simple to use. This Shop Press package includes a Portable Power Unit and is ready to PLUG IN & POWER UP.

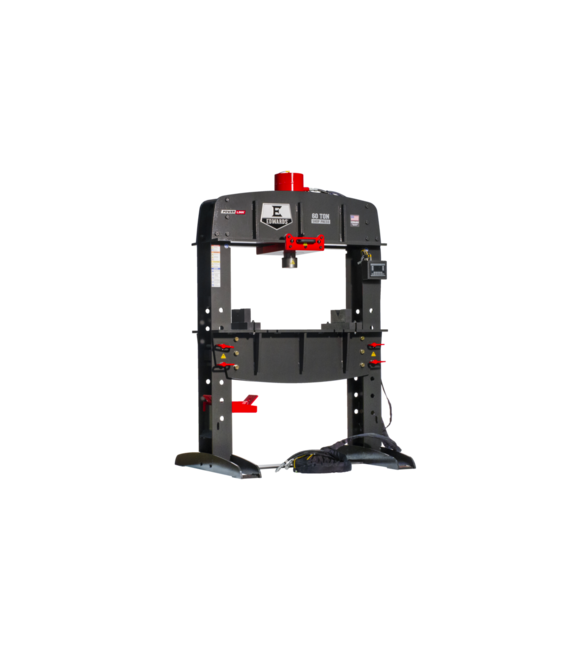

60 Ton Shop Press with PLC and Portable Power Unit 460V, 3Ph

Features & Benefits

  • 20' quick-connect hoses for simple "plug & play" operation
  • Accepts a variety of standard and custom tooling
  • Electric foot pedal with integrated jog control
  • Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket
  • Magnetic PLC control box mounts anywhere on the shop press for user performance and comfort
  • Open-sided design allows longer material to pass through the frame
  • Programmable Logic Control (PLC) allows operators to create repeatable actions, improving efficiency
  • Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate (included)
  • Rolling cylinder provides maximum adaptability
SAP EAN Number Code (UPC)731325714272
Model NumberHAT8080
SAP Country of OriginUSA
Warranty1 Year
SAP Length72
SAP Height122
SAP Width102
SAP Gross Weight1900
SAP Net weight1900
Accessories ProductsPR135,PRB06-1,PRB12,PRB18,PRB24,PRB32,PRB60
End User SellableNo
Gross Weight (Lbs)2300.0000
Gross Weight (Lbs) (Unit)Pound
Item Display Order18.0000
Minimum Ram Speed (In./Sec).330
Minimum Return Speed (In./Sec).456
Net Weight (Lbs.)2300.0000
Net Weight (Lbs.) (Unit)Pound
Product Dimensions (In.)48 x 54 x 86
Prop 65Cancer and Reproductive Harm
Rating (Tons)60.0000
Rating (Tons) (Unit)Ton
Stroke (In.)12-1/4
Weight (Lbs.)2300.0000
Weight (Lbs.) (Unit)Pound
Work Table (In.)39-1/4 x 42

Part #: HAT8080

Price: $23,499.00
