60T SHOP PRESS & PORTABLE POWER 1PH
60T SHOP PRESS & PORTABLE POWER 1PH60T SHOP PRESS & PORTABLE POWER 1PH60T SHOP PRESS & PORTABLE POWER 1PH
60T SHOP PRESS & PORTABLE POWER 1PH60T SHOP PRESS & PORTABLE POWER 1PH60T SHOP PRESS & PORTABLE POWER 1PH

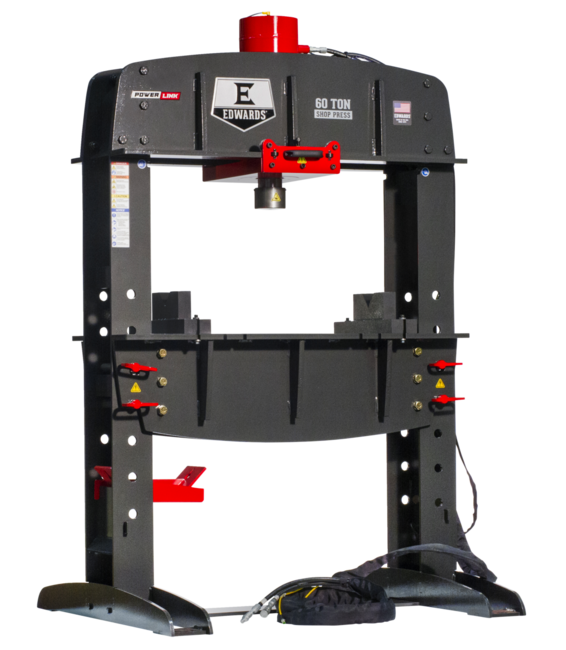

Powerful and flexible, the 60 Ton Shop Press can easily improve your productivity. With a large work table area, this Shop Press accepts both standard and custom tooling to press bearings, bend metal or straighten a part. The rolling cylinder, open-sided design, pressure gauge, and electric foot pedal make this machine simple to use. This Shop Press package includes a Portable Power Unit and is ready to PLUG IN & POWER UP. Also available with Programmable Logic Control (PLC).

60 Ton Shop Press and Portable Power Unit 230V, 1Ph

Features & Benefits

  • 20' quick-connect hoses for simple "plug & play" operation
  • Accepts a variety of standard and custom tooling
  • Electric foot pedal with integrated jog control
  • Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket
  • Open-sided design allows longer material to pass through the frame
  • Pressure gauge provides accurate measurements allowing for easy repeatable parts production
  • Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate (included)
  • Rolling cylinder provides maximum adaptability
SAP EAN Number Code (UPC)731325714210
Model NumberHAT8010
SAP Country of OriginUSA
Warranty1 Year
SAP Length72
SAP Height122
SAP Width102
SAP Gross Weight1900
SAP Net weight1900
Accessories ProductsPR135,PRB06-1,PRB12,PRB18,PRB24,PRB32,PRB60
End User SellableNo
Gross Weight (Lbs)2300.0000
Gross Weight (Lbs) (Unit)Pound
Item Display Order13.0000
Minimum Ram Speed (In./Sec).330
Minimum Return Speed (In./Sec).456
Net Weight (Lbs.)2300.0000
Net Weight (Lbs.) (Unit)Pound
Product Dimensions (In.)48 x 54 x 86
Prop 65Cancer and Reproductive Harm
Rating (Tons)60.0000
Rating (Tons) (Unit)Ton
Stroke (In.)12-1/4
Weight (Lbs.)2300.0000
Weight (Lbs.) (Unit)Pound
Work Table (In.)39-1/4 x 42

Part #: HAT8010

Price: $18,799.00
