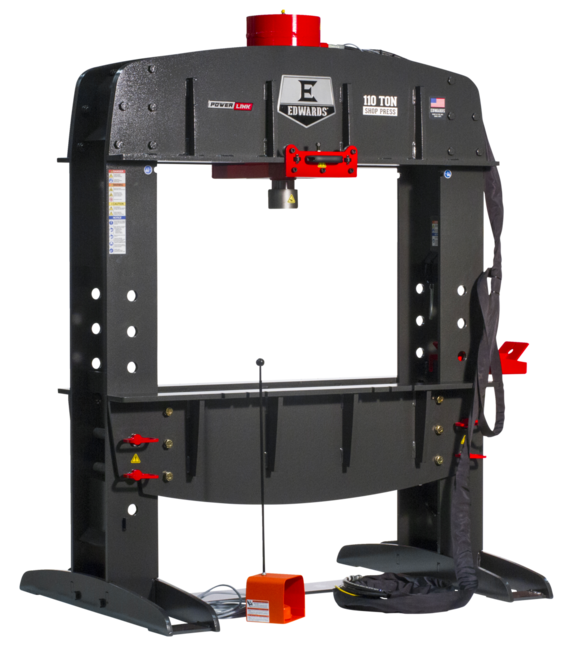

HAT9030 110T SHOP PRESS & PORTABLE POWER UNIT 3P
HAT9030 110T SHOP PRESS & PORTABLE POWER UNIT 3PHAT9030 110T SHOP PRESS & PORTABLE POWER UNIT 3PHAT9030 110T SHOP PRESS & PORTABLE POWER UNIT 3P
HAT9030 110T SHOP PRESS & PORTABLE POWER UNIT 3PHAT9030 110T SHOP PRESS & PORTABLE POWER UNIT 3PHAT9030 110T SHOP PRESS & PORTABLE POWER UNIT 3P
HAT9030 110T SHOP PRESS & PORTABLE POWER UNIT 3P

Our most powerful Shop Press, the 110 Ton offers the greatest capacity for the widest variety of projects. Able to accept all of our standard tooling along with custom tooling in its large work table area, the 110 Ton can press bearings, bend metal or straighten your parts. The rolling cylinder, open-sided design, pressure gauge, and electric foot pedal make this machine simple to use. This Shop Press package includes a Portable Power Unit and is ready to PLUG IN & POWER UP. Also available with Programmable Logic Control (PLC).

110 Ton Shop Press and Portable Power Unit 460V, 3Ph

Features & Benefits

  • 20' quick-connect hoses for simple "plug & play" operation
  • Accepts a variety of standard and custom tooling
  • Electric foot pedal with integrated jog control
  • Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket
  • Open-sided design allows longer material to pass through the frame
  • Pressure gauge provides accurate measurements allowing for easy repeatable parts production
  • Rolling cylinder provides maximum adaptability
SAP EAN Number Code (UPC)731325714319
Model NumberHAT9030
SAP Country of OriginUSA
Warranty1 Year
SAP Length72
SAP Height123
SAP Width112
SAP Gross Weight2200
SAP Net weight2200
Accessories ProductsPR135,PRB06-1,PRB110,PRB12,PRB18,PRB24,PRB32
End User SellableNo
Gross Weight (Lbs)2600.0000
Gross Weight (Lbs) (Unit)Pound
Item Display Order21.0000
Minimum Ram Speed (In./Sec).186
Minimum Return Speed (In./Sec).220
Net Weight (Lbs.)2600.0000
Net Weight (Lbs.) (Unit)Pound
Product Dimensions (In.)48 x 64 x 88
Prop 65Cancer and Reproductive Harm
Rating (Tons)110.0000
Rating (Tons) (Unit)Ton
Steel Frame Thickness (In.)3/4
Stroke (In.)12-1/4
Weight (Lbs.)3120.0000
Weight (Lbs.) (Unit)Pound
Work Table (In.)37-7/16 x 48

Part #: HAT9030

Price: $22,849.00
