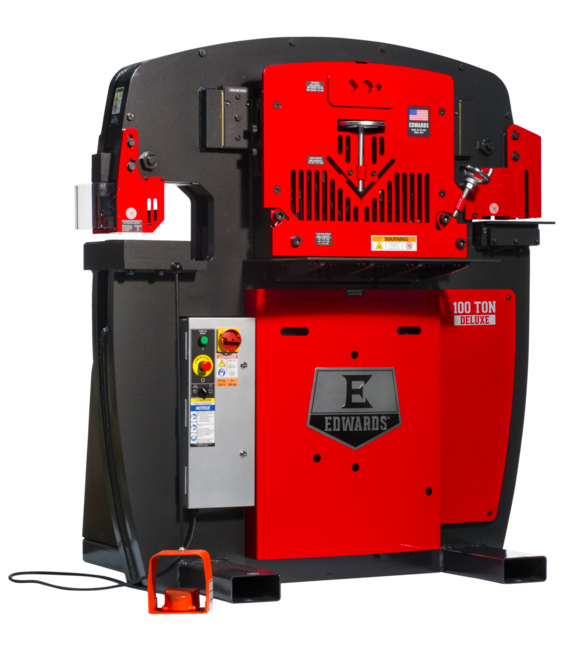

100T DELUXE IRONWORKER - 3PH, 460V

100 Ton Deluxe Ironworker without PowerLink System

<< Back

100T DELUXE IRONWORKER - 3PH, 460V
100T DELUXE IRONWORKER - 3PH, 460V100T DELUXE IRONWORKER - 3PH, 460V100T DELUXE IRONWORKER - 3PH, 460V
100T DELUXE IRONWORKER - 3PH, 460V100T DELUXE IRONWORKER - 3PH, 460V100T DELUXE IRONWORKER - 3PH, 460V

The 100 Ton Deluxe Ironworker produces greater cycle times and increased operation speed with its 10 HP motor. The 5 Workstations include a 18" wide flat bar shear and integrated rod shear while accepting 10 additional Attachments and 15 Accessories. Extremely powerful and durable, designed for heavy-duty use made in USA, this Ironworker can handle anything you throw at it.

100 Ton Deluxe Ironworker 460V, 3Ph

Features & Benefits

  • Adjustable electric stoke control
  • Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
  • ANSI B11.5-1988(02) Compliant Guarding
  • Bright LED lights increases visibility
  • Electric foot pedal with integrated jog control
  • ETL Certified Controls
  • Five Workstations: Standard (5) - Punch, Flat Bar Shear, Angle Shear, Coper Notcher, and Rod Shear
  • Optimized workstation heights for improved efficiency
  • Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
  • Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
SAP EAN Number Code (UPC)731325555868
Model NumberIW100DX-3P460
SAP Country of OriginUSA
SAP Length60
SAP Height69
SAP Width67
SAP Gross Weight5180
SAP Net weight5076
Accessories ProductsAC0125,AC0800,AC0900,AC0903,AC0905,AC0925,AC0925T,AC1000,AC1001,AC1009,AC1010,AC1017,AC1023-3,AC1024,AC1033,AC1034,AC1035,AC1051,AC1055-2,AC1074,AC1075,AC1098,AC1099,AC1911,AC1912,AC1913,AC1914-4,PD1000,PR135
Amps - jpw_amps12
Angle Shear Max Capacity 1/2"6 x 6
Angle Shear Max Capacity (In.)6 x 6 x 1/2
Angle Shear Work Height (In.)43-15/16
Coper Notcher Max Capacity (In.)3 x 6 x 1/2
Coper Notcher Work Height (In.)42
End User SellableNo
Flat Bar Shear Max Capacity 1"10
Flat Bar Shear Max Capacity 1/2"18
Flat Bar Shear Max Capacity 3/4"14
Flat Bar Shear Max Round Capacity (In.)1
Flat Bar Shear Max Round (In)1
Flat Bar Shear Max Square (In)1
Flat Bar Shear Work Height (In.)37
Hydraulics (GPM)24
Hydraulics (PSI)3800.0000
Hydraulics (PSI) (Unit)Pound per square inch
Hydraulic Pump (GPM)24
Hydraulic Reservoir (Gal.)17.0000
Hydraulic Reservoir (Gal.) (Unit)Gallon
Item Display Order5.0000
Motor Amps11
Motor (HP)7.5 HP 3 ~ 460V
Motor Speed (RPM)1765
Package NameThe Edwards 100 Ton Ironworker, Deluxe, JAWS, Rod Shear
Product Dimensions (In.)56 x 45-1/2 x 63-1/8
Prop 65Cancer and Reproductive Harm
Punch Open Height (In)8-3/4
Punch Shut Height (In)6-13/16
Rating (Tons)100.0000
Rating (Tons) (Unit)Ton
Reservoir (Gal.)17
Rod Shear Max Round (In)1-1/2
Rod Shear Max Square (In)1-1/4
Rod Shear Work Height (In)54-1/2
Valve Pressure (PSI)3800.0000
Valve Pressure (PSI) (Unit)Pound per square inch
Weight (Lbs.)5180.0000
Weight (Lbs.) (Unit)Pound

Part #: IW100DX-3P460

Price: $41,669.00
