100T IW 230V,3PH,PWRLINK,CPR NTCHR,2LED

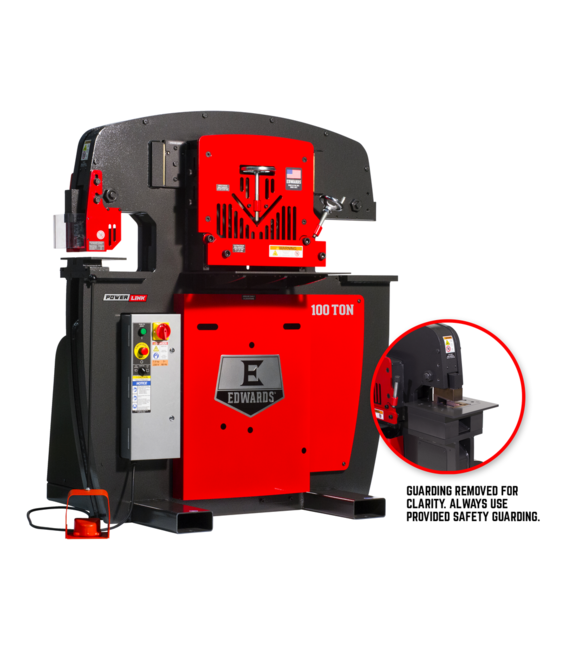

100 Ton Ironworker with PowerLink System

<< Back

100T IW 230V,3PH,PWRLINK,CPR NTCHR,2LED
100T IW 230V,3PH,PWRLINK,CPR NTCHR,2LED100T IW 230V,3PH,PWRLINK,CPR NTCHR,2LED100T IW 230V,3PH,PWRLINK,CPR NTCHR,2LED

This 100 Ton Ironworker provides optimal power and adaptability to handle any project with its 4 Workstations including a factory-installed Coper Notcher and two LED Lights. Compatible with 12 interchangeable Attachments and 17 Accessories to adapt the Ironworker to your needs. Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life. Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes. Includes a 10" Brake with 4-Way Die allowing 1/16", 1/8", 3/16" and 1/4" material to be formed to a 90 angle. Ideal for larger fabrication shops or those jobs requiring heavier materials.

100 Ton Ironworker 230V, 3Ph, PowerLink, Coper Notcher & 2 LED Lights

Features & Benefits

  • Adjustable electric stoke control
  • ANSI B11.5-1988(02) Compliant Guarding
  • Durable, heavy-duty Made in USA steel construction
  • ETL Certified Controls
  • Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
  • Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
  • Optimized workstation heights for improved efficiency
SAP EAN Number Code (UPC)731325745849
Model Number10233512
SAP Country of OriginUSA
Warranty1 Year
SAP Length46
SAP Height67
SAP Width69
SAP Gross Weight4650
SAP Net weight4557
Accessories ProductsAC0125,AC0800,AC0900,AC0903,AC0905,AC0925,AC0925T,AC1001,AC1009,AC1010,AC1017,AC1023-3,AC1024,AC1033,AC1034,AC1035,AC1051,AC1055-2,AC1074,AC1075,AC1099,AC1911,AC1912,AC1913,AC1914-4,PD1000,PR135
BOM ProductsAC1000,AC1098,IW100-3P230-AC600
Amps - jpw_amps22
Angle Shear Max Capacity 1/2"6 x 6
Angle Shear Max Capacity (In.)6 x 6 x 1/2
End User SellableNo
Flat Bar Shear Max Capacity 1"10
Flat Bar Shear Max Capacity 3/4"14
Flat Bar Shear Max Capacity (In.)3/4 x 14, 1 x 10
Flat Bar Shear Max Round Capacity (In.)1-1/4
Flat Bar Shear Max Round (In)1-1/4
Flat Bar Shear Max Square Capacity (In.)1-1/4
Flat Bar Shear Max Square (In)1-1/4
Flat Bar Shear Work Height (In.)37
Hydraulics (GPM)10-1/2
Hydraulics (PSI)3500.0000
Hydraulics (PSI) (Unit)Pound per square inch
Hydraulic Pump (GPM)10-1/2
Hydraulic Reservoir (Gal.)17.0000
Hydraulic Reservoir (Gal.) (Unit)Gallon
Item Display Order5.0000
Motor Amps22
Motor (HP)7.5 HP 3 ~ 230V
Motor Speed (RPM)1765
Open Station Throat Depth (In)14-3/4
Open Workstation Throat Depth (In.)14-3/4
Open Workstation Work Height (In.)37
Package NameThe Edwards 100 Ton Ironworker with PowerLink and Coper Notcher with lighted workstations, 3Ph, 230 Volt
Product Dimensions (In.)56-1/8 x 45 x 61-11/16
Prop 65Cancer and Reproductive Harm
Punch Max Capacity (In.)1-1/16 dia in 1" A36"
Punch Open Height (In)8-3/4
Punch Rating (Tons)100
Punch Shut Height (In)6-15/16
Punch Stroke (In.)1-13/16
Punch Throat Depth (In.)11
Punch Work Height (In.)39-1/16
Rating (Tons)100.0000
Rating (Tons) (Unit)Ton
Shipping Dimensions (L x W x H) (In.)46 x 69 x 67
Valve Pressure (PSI)3500.0000
Valve Pressure (PSI) (Unit)Pound per square inch
Weight (Lbs.)4650.0000
Weight (Lbs.) (Unit)Pound

Part #: 10233512

Price: $36,259.00
Quantity:
