120T IRONWORKER - 1PH, 230V

120 Ton Ironworker without PowerLink System

<< Back

120T IRONWORKER - 1PH, 230V

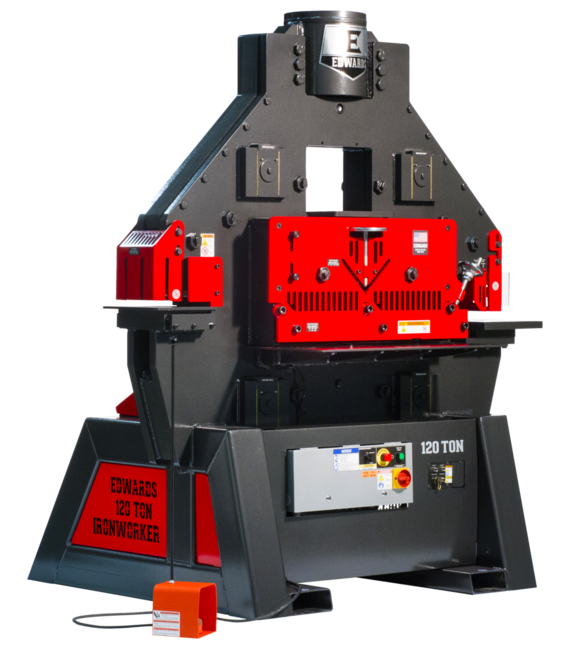

120 Ton Ironworker 230V, 1Ph

Our most powerful Ironworker, the 120 Ton offers the largest capacity and most flexibility. The 5 Workstations include a punch, flat bar shear, angle shear, coper notcher, and Open Cavity that accepts 4 Attachments. Further customize the Ironworker to your projects with 12 additional Attachments and 15 Accessories. The longer stroke length and increased capacity provided by this Ironworker allow it to handle the most heavy-duty projects.

Features & Benefits

  • 15 optional Accessories available to increase precision and efficiency
  • Compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend or cope all in one machine.
  • Optimized workstation heights for improved efficiency
  • Electric foot pedal with integrated jog control
  • Adjustable electric stoke control
  • Bright LED lights increase visibility
  • ANSI B11.5-1988(02) Compliant Guarding
  • ETL Certified Controls
UPC731325555899
SAP Material GroupMF02
SAP Material TypeZFIN
SAP Warranty1 Year
Model NumberIW120-1P230
SAP OwnerEMF
SAP Country of OriginUS
SAP Product CategoryMW
SAP Rounding ProfileNA
SAP Height87.000
SAP Length60.000
SAP Volume202.396
SAP Width67.000
Prop 65Cancer and Reproductive Harm
Country of OriginUSA
Punch Rating (tons)120
Punch Max Capacity (In.)1-1/2 diam. In 1 mild steel
Punch Work Height (In.)36-5/8
Punch Throat Depth (In.)11
Punch Stroke (In.)2
Flat Bar Shear Max Capacity (In.)1/2 x 24, 1 x 12
Flat Bar Shear Work Height (In.)33-1/4
Flat Bar Shear Max Round Capacity (In.)1-1/4
Flat Bar Shear Max Square Capacity (In.)1-1/4
Angle Shear Max Capacity (In.)6 x 6 x 1/2
Angle Shear Work Height (In.)52-1/2
Coper Notcher Work Height (In.)40
Coper Notcher Max Capacity (In.)3 x 6 x 1/2
Open Cavity Height (In.)9
Open Cavity Width (In.)11-3/4
Open Cavity Work Height (In.)51-3/4
Motor10 HP 230V 1Ph
Amps40
Hydraulics (PSI)3800
Hydraulic Reservoir (Gal.)17
Hydraulics (GPM)24
Product Dimensions (In.)60 x 60 x 84
Shipping Dimensions (In.)60 x 67 x 87
Weight (lbs.)5975
Overall Dimensions (H x W x D) (In.)84 x 60 x 60

Part #: IW120-1P230

Price: $32,699.00
