120T IRONWORKER-3PH, 575V, POWERLINK SYS

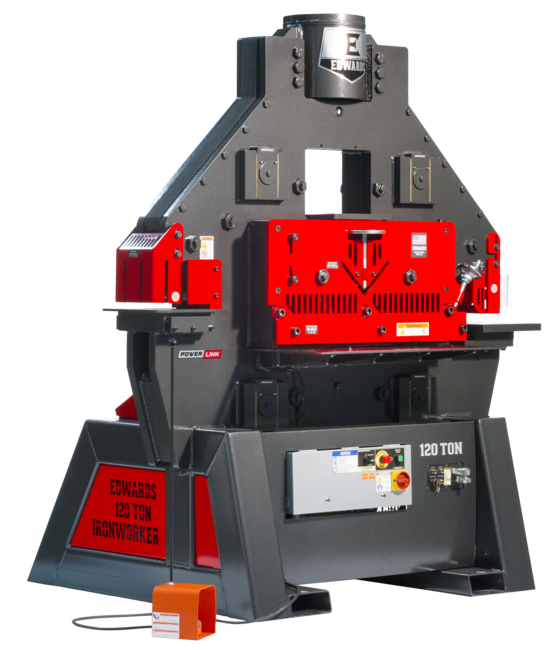

120 Ton Ironworker with PowerLink System

<< Back

120T IRONWORKER-3PH, 575V, POWERLINK SYS
120T IRONWORKER-3PH, 575V, POWERLINK SYS120T IRONWORKER-3PH, 575V, POWERLINK SYS120T IRONWORKER-3PH, 575V, POWERLINK SYS
120T IRONWORKER-3PH, 575V, POWERLINK SYS120T IRONWORKER-3PH, 575V, POWERLINK SYS120T IRONWORKER-3PH, 575V, POWERLINK SYS

Our most powerful Ironworker, the 120 Ton, offers the largest capacity and most flexibility - created with heavy-duty Made in USA steel construction. This compact machine allows for fast and easy transitions between fabrication operations. The 5 Workstations include a punch, flat bar shear, angle shear, coper notcher, and Open Cavity that accepts 4 Attachments. Further customize the Ironworker to your projects with 12 additional Attachments and 15 Accessories. Other features include an electric foot pedal with integrated jog control and bright LED lights to increase visibility. In addition, the PowerLink System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools. The longer stroke length and increased capacity provided by this Ironworker allow it to handle the most heavy-duty projects.

120 Ton Ironworker 575V, 3Ph, with PowerLink

Features & Benefits

  • Adjustable electric stoke control
  • Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
  • ANSI B11.5-1988(02) Compliant Guarding
  • ETL Certified Controls
  • Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
  • Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
  • Optimized workstation heights for improved efficiency
  • Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
  • Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
SAP EAN Number Code (UPC)731325556001
Model NumberIW120-3P575-AC900
SAP Country of OriginUSA
SAP Length60
SAP Height87
SAP Width67
SAP Gross Weight5975
SAP Net weight5856
Accessories ProductsAC0125,AC0800,AC0900,AC0903,AC0905,AC0925,AC0925T,AC1000,AC1001,AC1009,AC1010,AC1017,AC1023-3,AC1024,AC1033,AC1034,AC1035,AC1051,AC1055-2,AC1074,AC1075,AC1098,AC1099,AC1911,AC1912,AC1913,AC1914-4,PD1000,PR135
Amps - jpw_amps10
Angle Shear Max Capacity 1/2"6 x 6
Angle Shear Max Capacity (In.)6 x 6 x 1/2
Angle Shear Work Height (In.)52-1/2
Coper Notcher Max Capacity (In.)3 x 6 x 1/2
Coper Notcher Work Height (In.)40
End User SellableNo
Flat Bar Shear Max Capacity 1"12
Flat Bar Shear Max Capacity 1/2"24
Flat Bar Shear Max Round Capacity (In.)1-1/4
Flat Bar Shear Max Round (In)1-1/4
Flat Bar Shear Max Square (In)1-1/4
Flat Bar Shear Work Height (In.)33-1/4
Hydraulics (GPM)24
Hydraulics (PSI)3800.0000
Hydraulics (PSI) (Unit)Pound per square inch
Hydraulic Pump (GPM)24
Hydraulic Reservoir (Gal.)17.0000
Hydraulic Reservoir (Gal.) (Unit)Gallon
Item Display Order6.0000
Motor Amps10
Motor (HP)10 HP 3 ~ 575V
Motor Speed (RPM)1770
Package NameThe Edwards 120 Ton Ironworker, JAWS, Universal Open Tooling Station, Hydraulic Accessory Power Pack
Product Dimensions (In.)60 x 60 x 84
Prop 65Cancer and Reproductive Harm
Punch Open Height (In)9-1/8
Punch Shut Height (In)7-1/8
Rating (Tons)120.0000
Rating (Tons) (Unit)Ton
Reservoir (Gal.)17
Valve Pressure (PSI)3800.0000
Valve Pressure (PSI) (Unit)Pound per square inch
Weight (Lbs.)5500.0000
Weight (Lbs.) (Unit)Pound

Part #: IW120-3P575-AC900

Price: $46,549.00
Quantity:
