50T IRONWORKER-3PH, 380V, POWERLINK SYS

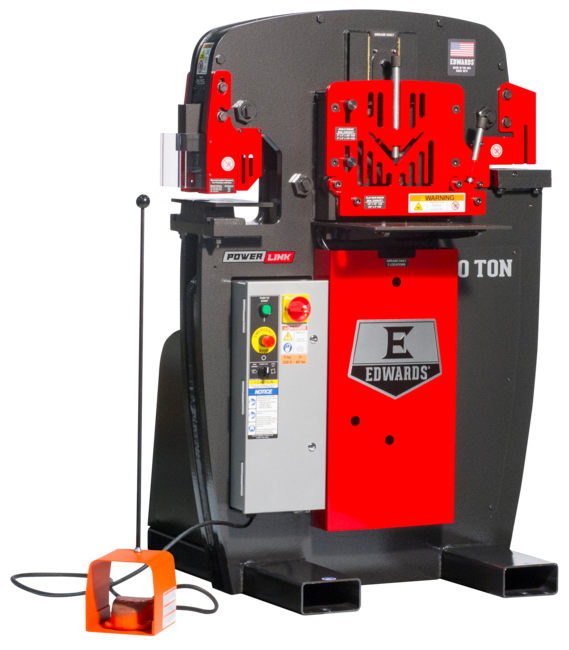

50 Ton Ironworker with PowerLink System

<< Back

50T IRONWORKER-3PH, 380V, POWERLINK SYS
50T IRONWORKER-3PH, 380V, POWERLINK SYS50T IRONWORKER-3PH, 380V, POWERLINK SYS50T IRONWORKER-3PH, 380V, POWERLINK SYS
50T IRONWORKER-3PH, 380V, POWERLINK SYS50T IRONWORKER-3PH, 380V, POWERLINK SYS50T IRONWORKER-3PH, 380V, POWERLINK SYS

Ideal for a small to medium workshop that needs greater capacity, the 50 Ton Ironworker is durable and heavy-duty made in the USA steel construction. This Ironworker has 4 Workstations which include Punch, Flat Bar Shear, Angle Shear, and a dedicated factory-installed Coper Notcher. This compact machine allows for fast and easy transitions between fabrication operations. The PowerLink System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools. Accepting 9 Attachments and 16 Accessories, this compact machine can tackle any project you throw at it.

50 Ton Ironworker, 380V, 3Ph, 50Hz - Intl with PowerLink

Features & Benefits

  • Adjustable electric stoke control
  • Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
  • ANSI B11.5-1988(02) Compliant Guarding
  • Bright LED lights increases visibility
  • Electric foot pedal with integrated jog control
  • Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
  • Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
  • Optimized workstation heights for improved efficiency
  • Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
  • Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
SAP EAN Number Code (UPC)731325556247
Model NumberIW50-3P380-AC500
SAP Country of OriginUSA
SAP Length45
SAP Height62
SAP Width51
SAP Gross Weight2020
SAP Net weight1980
Accessories ProductsAC0125,AC0800,AC0900,AC0903,AC0905,AC0925,AC0925T,AC1000,AC1001,AC1009,AC1010,AC1017,AC1023-3,AC1024,AC1033,AC1034,AC1035,AC1051,AC1055-2,AC1074,AC1075,AC1098,AC1099,AC1911,AC1912,AC1913,AC1914-4,PD1000,PR135
Amps - jpw_amps8
Angle Shear Max Capacity 1/4"4 x 4
Angle Shear Work Height (In.)39-7/8
Coper Notcher Max Capacity (In.)2 x 3 x 5/16
Coper Notcher Work Height (In.)39-1/2
End User SellableNo
Flat Bar Shear Max Capacity 1/2"10
Flat Bar Shear Max Capacity 3/4"4
Flat Bar Shear Max Round (In)3/4
Flat Bar Shear Max Square (In)3/4
Flat Bar Shear Work Height (In.)34-1/2
Hydraulics (GPM)3-1/2
Hydraulics (PSI)2500.0000
Hydraulics (PSI) (Unit)Pound per square inch
Hydraulic Pump (GPM)3-1/2
Item Display Order4.0000
Motor (HP)5 HP 3 ~ 380V, 50 Hz
Motor Speed (RPM)1725
Package NameThe Edwards 50 Ton Ironworker, JAWS, Dedicated Coper Notcher Station, Hydraulic Accessory Power Pack
Product Dimensions (In.)36-3/4 x 36-1/8 x 54-1/2
Prop 65Cancer and Reproductive Harm
Punch Open Height (In)8-1/8
Punch Shut Height (In)6-1/4
Punch Throat Depth (In.)7
Punch Work Height (In.)36-9/16
Rating (Tons)50.0000
Rating (Tons) (Unit)Ton
Reservoir (Gal.)7
Valve Pressure (PSI)2750.0000
Valve Pressure (PSI) (Unit)Pound per square inch
Weight (Lbs.)2020.0000
Weight (Lbs.) (Unit)Pound

Part #: IW50-3P380-AC500

Price: $16,789.00
Quantity:
