55T IRONWORKER-3PH, 208V, POWERLINK SYS

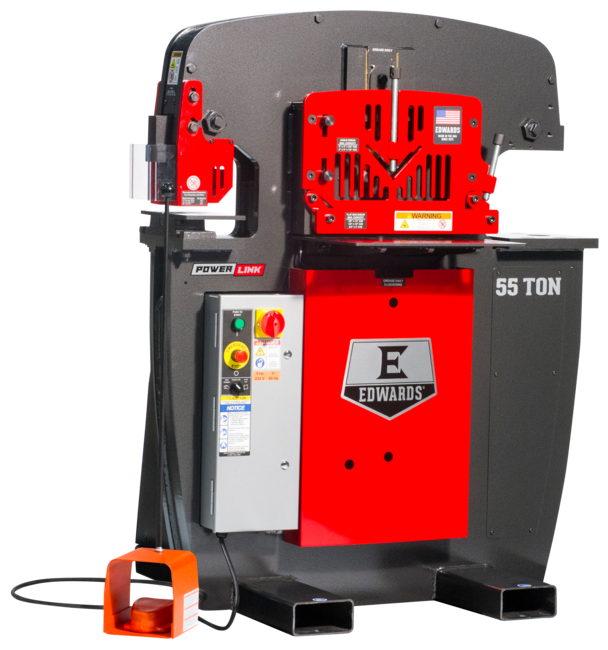

55 Ton Ironworker with PowerLink System

<< Back

55T IRONWORKER-3PH, 208V, POWERLINK SYS
55T IRONWORKER-3PH, 208V, POWERLINK SYS55T IRONWORKER-3PH, 208V, POWERLINK SYS55T IRONWORKER-3PH, 208V, POWERLINK SYS
55T IRONWORKER-3PH, 208V, POWERLINK SYS55T IRONWORKER-3PH, 208V, POWERLINK SYS55T IRONWORKER-3PH, 208V, POWERLINK SYS

The 55 Ton Ironworker provides more than enough power for larger projects and offers the ability to customize one of its 4 Workstations with 11 interchangeable Attachments. There are 17 Accessories that improve operator accuracy and productivity. Great for general use from medium size shops to full factory maintenance departments. The PowerLink System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools. ETL/UL Approved Controls.

55 Ton Ironworker 208V, 3Ph with PowerLink

Features & Benefits

  • Adjustable electric stoke control
  • ANSI B11.5- 1988(02) Compliant Guarding
  • Integrated E-Stop, Lock-out/Tag-out
  • Interchangeable Attachments available to tailor the Ironworker to your needs
  • Optimized workstation heights for improved efficiency
  • Optional Accessories available to increase precision and efficiency
SAP EAN Number Code (UPC)731325556339
Model NumberIW55-3P208-AC500
SAP Country of OriginUSA
SAP Length45
SAP Height62
SAP Width51
SAP Gross Weight2480
SAP Net weight2430
Accessories ProductsAC0125,AC0800,AC0900,AC0903,AC0905,AC0925,AC0925T,AC1000,AC1001,AC1009,AC1010,AC1017,AC1023-3,AC1024,AC1033,AC1034,AC1035,AC1051,AC1055-2,AC1074,AC1075,AC1098,AC1099,AC1911,AC1912,AC1913,AC1914-4,PD1000,PR135
Amps - jpw_amps14
Angle Shear Max Capacity 1/4"4 x 4
Angle Shear Work Height (In.)39-7/8
End User SellableNo
Flat Bar Shear Max Capacity 1/2"12
Flat Bar Shear Max Capacity 3/4"4
Flat Bar Shear Max Capacity 3/8"14
Flat Bar Shear Max Round (In)7/8
Flat Bar Shear Max Square (In)7/8
Flat Bar Shear Work Height (In.)34-1/2
Hydraulics (GPM)3-1/2
Hydraulics (PSI)2500.0000
Hydraulics (PSI) (Unit)Pound per square inch
Hydraulic Pump (GPM)3-1/2
Item Display Order4.0000
Motor Amps14
Motor (HP)5 HP 3 ~ 208V
Motor Speed (RPM)1725
Open Station Open Height (In)8-1/8
Open Station Shut Height (In)6-7/8
Open Station Stroke (In)1-1/4
Open Station Throat Depth (In)11-3/16
Open Station Work Height (In)34-1/2
Open Workstation Throat Depth (In.)11-3/16
Open Workstation Work Height (In.)34-1/2
Optional Coper Notcher Work Height (In.)39-1/2
Package NameThe Edwards 55 Ton Ironworker, JAWS, Universal Open Tooling Station, Hydraulic Accessory Power Pack
Product Dimensions (In.)44-3/8 x 36-1/8 x 55-1/4
Prop 65Cancer and Reproductive Harm
Punch Open Height (In)8-1/8
Punch Shut Height (In)6-7/8
Punch Stroke (In.)1-1/4
Punch Throat Depth (In.)7-1/2
Punch Work Height (In.)36-9/16
Rating (Tons)55.0000
Rating (Tons) (Unit)Ton
Configurator Option TypeBase Machine
Reservoir (Gal.)7
Valve Pressure (PSI)2750.0000
Valve Pressure (PSI) (Unit)Pound per square inch
Weight (Lbs.)2480.0000
Weight (Lbs.) (Unit)Pound

Part #: IW55-3P208-AC500

Price: $17,049.00
