55T IW 230V,3PH, PWRLNK, CPER NTCHR

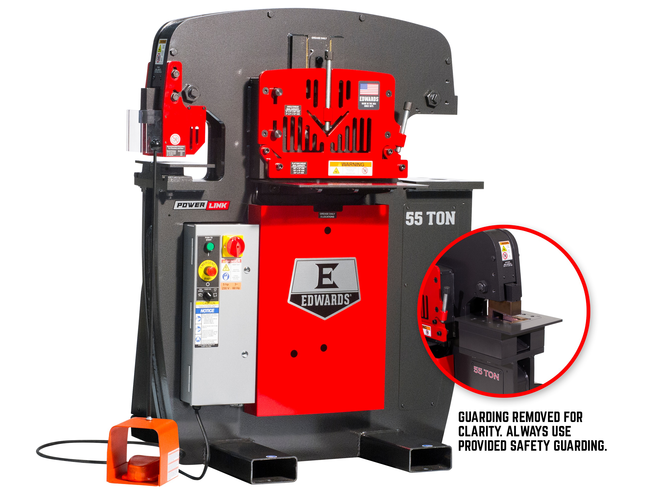

55 Ton Ironworker with PowerLink System

<< Back

55T IW 230V,3PH, PWRLNK, CPER NTCHR
55T IW 230V,3PH, PWRLNK, CPER NTCHR55T IW 230V,3PH, PWRLNK, CPER NTCHR55T IW 230V,3PH, PWRLNK, CPER NTCHR

This 55 Ton Ironworker includes a factory-installed coper notcher, provides power for large projects, and offers the ability to customize one of its four workstations with 11 interchangeable attachments, and 17 additional accessories to help improve operator accuracy and productivity. The Angle Shear blades have 2 corner radii and are made of precision tool steel with 2 cutting edges, while the Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges. Great for general use from medium size shops to full factory maintenance departments, the compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend, or cope all in one machine. The PowerLink System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools.

55 Ton Ironworker 3 Phase, 230 Volt, PowerLink, Coper Notcher

Features & Benefits

  • Adjustable electric stoke control
  • ANSI B11.5-1988(02) Compliant Guarding
  • Bright LED lights increases visibility
  • Durable, heavy-duty Made in USA steel construction
  • Electric foot pedal with integrated jog control
  • ETL Certified Controls
  • Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
  • Optimized workstation heights for improved efficiency
  • Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
  • Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
SAP EAN Number Code (UPC)731325745818
Model Number55233512
SAP Country of OriginUSA
Warranty1 Year
SAP Length45
SAP Height62
SAP Width51
SAP Gross Weight2480
SAP Net weight2430
Accessories ProductsAC0125,AC0800,AC0900,AC0903,AC0905,AC0925,AC0925T,AC1001,AC1009,AC1010,AC1017,AC1023-3,AC1024,AC1033,AC1034,AC1035,AC1051,AC1055-2,AC1074,AC1075,AC1098,AC1099,AC1911,AC1912,AC1913,AC1914-4,PD1000,PR135
BOM ProductsAC1000,AC1014,IW55-3P208-AC500
Amps - jpw_amps14
Angle Shear Max Capacity 1/2"4 x 4
Angle Shear Max Capacity 3/8"3 x 3
Angle Shear Max Capacity (In.)3 x 3 x 3/8, 4 x 4 x 1/4
Angle Shear Work Height (In.)39-7/8
Cylinder (In)2-1/2" Ram
End User SellableNo
Flat Bar Shear Max Capacity 1"12
Flat Bar Shear Max Capacity 3/4"4
Flat Bar Shear Max Capacity (In.)3/8 x 14, 1/2 x 12, 3/4 x 4
Flat Bar Shear Max Round Capacity (In.)7/8
Flat Bar Shear Max Round (In)7/8
Flat Bar Shear Max Square Capacity (In.)7/8
Flat Bar Shear Max Square (In)7/8
Flat Bar Shear Work Height (In.)34-1/2
Hydraulics (GPM)3-1/2
Hydraulics (PSI)2500.0000
Hydraulics (PSI) (Unit)Pound per square inch
Hydraulic Reservoir (Gal.)7.0000
Hydraulic Reservoir (Gal.) (Unit)Gallon
Item Display Order7.0000
Motor (HP)7.5 HP 3 ~ 230V
Motor Speed (RPM)1725
Open Station Open Height (In)8-1/8
Open Station Shut Height (In)6-7/8
Open Station Stroke (In)1-1/4
Open Station Throat Depth (In)11-3/16
Open Station Work Height (In)34-1/2
Open Workstation Throat Depth (In.)11-3/16
Open Workstation Work Height (In.)34-1/2
Opt. Coper Notcher Max Capacity (In.)2-1/2 x 4 x 5/16
Opt. Coper Notcher Work Height (In.)39-1/2
Package NameThe Edwards 55 Ton Ironworker with PowerLink and Coper Notcher with lighted workstations, 3 Ph, 230 Volt
Product Dimensions (In.)44-3/8 x 36-1/8 x 55-1/4
Prop 65Cancer and Reproductive Harm
Punch Max Capacity (In.)1-16 diam. In 5/8 mild steel
Punch Open Height (In)8-1/8
Punch Rating (Tons)55
Punch Shut Height (In)6-7/8
Punch Stroke (In.)1-1/4
Punch Throat Depth (In.)7-1/2
Punch Work Height (In.)36-9/16
Rating (Tons)55.0000
Rating (Tons) (Unit)Ton
Reservoir (Gal.)7
Shipping Dimensions (L x W x H) (In.)45 x 51 x 62
Valve Pressure (PSI)2750.0000
Valve Pressure (PSI) (Unit)Pound per square inch
Weight (Lbs.)2480.0000
Weight (Lbs.) (Unit)Pound

Part #: 55233512

Price: $18,909.00
