60T IRONWORKER-3PH, 208V, POWERLINK SYS

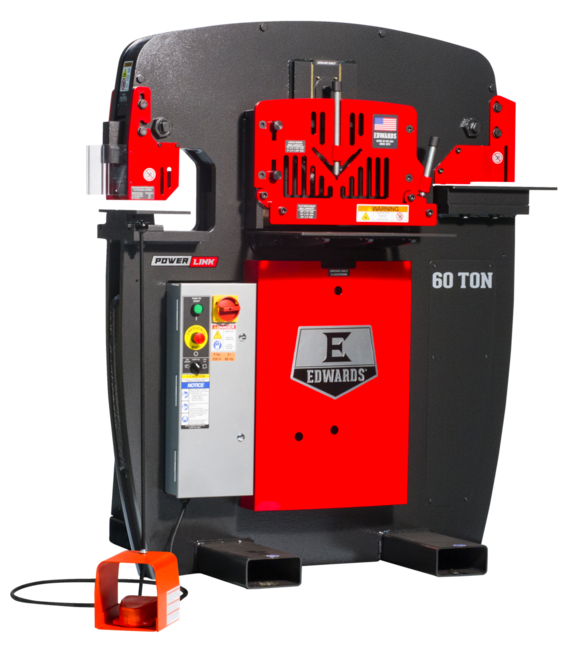

60 Ton Ironworker with PowerLink System

<< Back

60T IRONWORKER-3PH, 208V, POWERLINK SYS
60T IRONWORKER-3PH, 208V, POWERLINK SYS60T IRONWORKER-3PH, 208V, POWERLINK SYS60T IRONWORKER-3PH, 208V, POWERLINK SYS
60T IRONWORKER-3PH, 208V, POWERLINK SYS60T IRONWORKER-3PH, 208V, POWERLINK SYS60T IRONWORKER-3PH, 208V, POWERLINK SYS

The 60 Ton Ironworker has 4 workstations with a Punch, Flat Bar Shear, Angle Shear and Coper Notcher to handle both large and small projects. This allows for fast and easy transitions between fabrication operations. Other features include an electric foot pedal with integrated jog control and bright LED lights to increase visibility. The PowerLink System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools. In addition, with 9 interchangeable Attachments and 17 Accessories available, this Ironworker can adapt to any job you have. Perfect for any shop or fabrication department.

60 Ton Ironworker 208V, 3Ph, with PowerLink

Features & Benefits

  • Adjustable electric stoke control
  • Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
  • ANSI B11.5-1988(02) Compliant Guarding
  • Durable, heavy-duty Made in USA steel construction
  • ETL Certified Controls
  • Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
  • Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
  • Optimized workstation heights for improved efficiency
  • Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
  • Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
SAP EAN Number Code (UPC)731325556469
Model NumberIW60-3P208-AC500
SAP Country of OriginUSA
SAP Length45
SAP Height63
SAP Width51
SAP Gross Weight2550
SAP Net weight2499
Accessories ProductsAC0125,AC0800,AC0900,AC0903,AC0905,AC0925,AC0925T,AC1000,AC1001,AC1009,AC1010,AC1017,AC1023-3,AC1024,AC1033,AC1034,AC1035,AC1051,AC1055-2,AC1074,AC1075,AC1098,AC1099,AC1911,AC1912,AC1913,AC1914-4,PD1000,PR135
Amps - jpw_amps14
Angle Shear Max Capacity 1/2"3 x 3
Angle Shear Max Capacity 3/8"4 x 4
Angle Shear Work Height (In.)39-7/8
Coper Notcher Max Capacity (In.)2 x 4 x 5/16
Coper Notcher Work Height (In.)39-1/2
End User SellableNo
Flat Bar Shear Max Capacity 1/2"12
Flat Bar Shear Max Capacity 3/4"4
Flat Bar Shear Max Capacity 3/8"14
Flat Bar Shear Max Round (In)7/8
Flat Bar Shear Max Square (In)7/8
Flat Bar Shear Work Height (In.)34-1/2
Hydraulics (GPM)3-1/2
Hydraulics (PSI)2500.0000
Hydraulics (PSI) (Unit)Pound per square inch
Hydraulic Pump (GPM)3-1/2
Hydraulic Reservoir (Gal.)7.0000
Hydraulic Reservoir (Gal.) (Unit)Gallon
Item Display Order2.0000
Motor Amps14
Motor (HP)5 HP 3 ~ 208V
Motor Speed (RPM)1725
Package NameThe Edwards 60 Ton Ironworker, JAWS, Dedicated Coper Notcher Station, Hydraulic Accessory Power Pack
Product Dimensions (In.)46-1/8 x 36-1/8 x 56-1/8
Prop 65Cancer and Reproductive Harm
Punch Open Height (In)8-1/8
Punch Shut Height (In)6-7/8
Punch Stroke (In.)1-1/4
Punch Work Height (In.)36-9/16
Rating (Tons)60.0000
Rating (Tons) (Unit)Ton
Reservoir (Gal.)7
Valve Pressure (PSI)2750.0000
Valve Pressure (PSI) (Unit)Pound per square inch
Weight (Lbs.)2550.0000
Weight (Lbs.) (Unit)Pound

Part #: IW60-3P208-AC500

Price: $18,959.00
