75T IRONWORKER-3PH, 575V, POWERLINK SYS

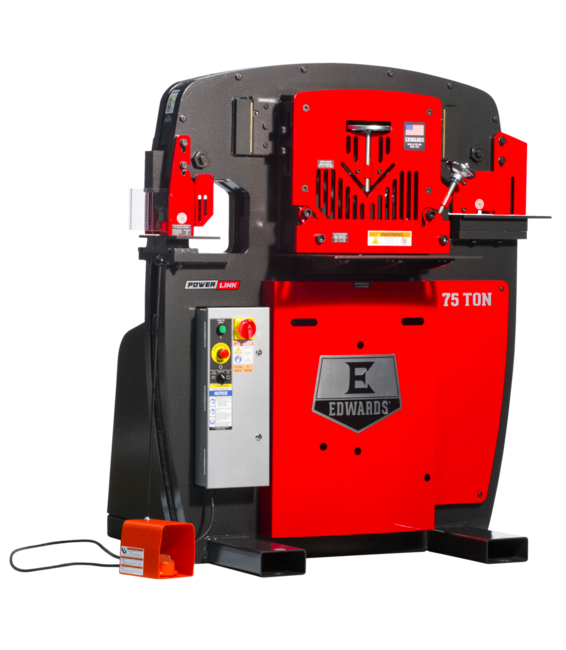

75 Ton Ironworker with PowerLink System

<< Back

75T IRONWORKER-3PH, 575V, POWERLINK SYS
75T IRONWORKER-3PH, 575V, POWERLINK SYS75T IRONWORKER-3PH, 575V, POWERLINK SYS75T IRONWORKER-3PH, 575V, POWERLINK SYS
75T IRONWORKER-3PH, 575V, POWERLINK SYS75T IRONWORKER-3PH, 575V, POWERLINK SYS75T IRONWORKER-3PH, 575V, POWERLINK SYS

The 75 Ton Ironworker makes quick work of heavier jobs with increased capacity on the punch, flat bar and angle shear, allowing for fast and easy transitions between fabrications. This 4 workstation Ironworker has a Coper Notcher installed and also accepts 12 interchangeable Attachments and 17 Accessories so you can modify as needed. Other features include an electric foot pedal with integrated jog control and bright LED lights to increase visibility. In addition, the PowerLink System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools. Perfect for those projects that just need a little more capacity.

75 Ton Ironworker 575V, 3Ph, with PowerLink

Features & Benefits

  • Adjustable electric stoke control
  • Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
  • ANSI B11.5-1988(02) Compliant Guarding
  • Durable, heavy-duty Made in USA steel construction
  • ETL Certified Controls
  • Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
  • Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
  • Optimized workstation heights for improved efficiency
  • Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
  • Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
SAP EAN Number Code (UPC)731325556803
Model NumberIW75-3P575-AC600
SAP Country of OriginUSA
SAP Length46
SAP Height66
SAP Width69
SAP Gross Weight4100
SAP Net weight4018
Accessories ProductsAC0125,AC0800,AC0900,AC0903,AC0905,AC0925,AC0925T,AC1000,AC1001,AC1009,AC1010,AC1017,AC1023-3,AC1024,AC1033,AC1034,AC1035,AC1051,AC1055-2,AC1074,AC1075,AC1098,AC1099,AC1911,AC1912,AC1913,AC1914-4,PD1000,PR135
Amps - jpw_amps8
Angle Shear Max Capacity (In.)5 x 5 x 1/2
Angle Shear Work Height (In.)43-15/16
Coper Notcher Max Capacity (In.)2-1/2 x 5 x 1/2
Coper Notcher Work Height (In.)42
End User SellableNo
Flat Bar Shear Max Capacity 1/2"14
Flat Bar Shear Max Capacity 3/4"10
Flat Bar Shear Max Round Capacity (In.)1
Flat Bar Shear Max Round (In)1
Flat Bar Shear Max Square (In)1
Flat Bar Shear Work Height (In.)37
Hydraulics (GPM)10-1/2
Hydraulics (PSI)3500.0000
Hydraulics (PSI) (Unit)Pound per square inch
Hydraulic Pump (GPM)10-1/2
Hydraulic Reservoir (Gal.)17.0000
Hydraulic Reservoir (Gal.) (Unit)Gallon
Item Display Order6.0000
Motor Amps8
Motor (HP)7.5 HP 3 ~ 575V
Motor Speed (RPM)1770
Package NameThe Edwards 75 Ton Ironworker, JAWS, Dedicated Coper Notcher Station, Hydraulic Accessory Power Pack
Product Dimensions (In.)50 x 45 x 60-1/4
Prop 65Cancer and Reproductive Harm
Punch Open Height (In)8-3/4
Punch Shut Height (In)6-15/16
Punch Work Height (In.)36-9/16
Rating (Tons)75.0000
Rating (Tons) (Unit)Ton
Reservoir (Gal.)17
Valve Pressure (PSI)3500.0000
Valve Pressure (PSI) (Unit)Pound per square inch
Weight (Lbs.)4100.0000
Weight (Lbs.) (Unit)Pound

Part #: IW75-3P575-AC600

Price: $30,159.00
