ELITE 110/65 DUAL OPERATOR IW 1PH, 230V
ELITE 110/65 DUAL OPERATOR IW 1PH, 230VELITE 110/65 DUAL OPERATOR IW 1PH, 230VELITE 110/65 DUAL OPERATOR IW 1PH, 230V
ELITE 110/65 DUAL OPERATOR IW 1PH, 230VELITE 110/65 DUAL OPERATOR IW 1PH, 230VELITE 110/65 DUAL OPERATOR IW 1PH, 230V

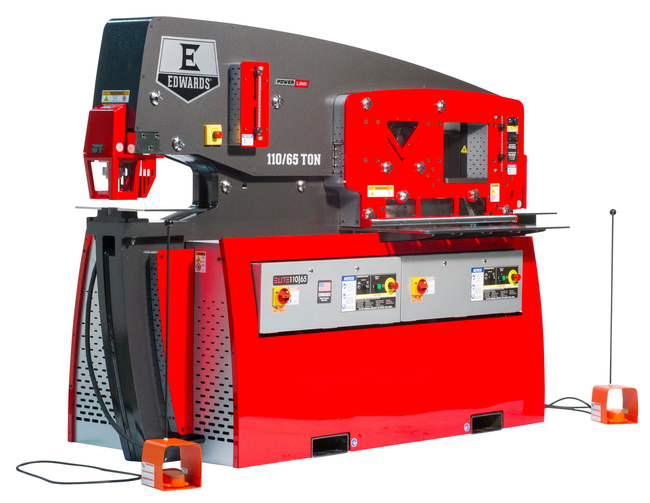

Designed for simultaneous use by two operators, the ELITE 110/65 Ton Ironworker contains two independent power plants. This machine includes five workstations: a punch station with oversized throat depth, a 24" wide flat bar shear, angle shear, coper notcher, and an open cavity that accepts four optional attachments. ELITE Ironworkers have premium features integrated into their design to maximize efficiency and increase productivity. The Hydraulic Hold-Down, Roller Encoder Measuring System, Swing-Away Stripper Assembly, and Quick Change Punch Assembly are designed to increase accuracy and save production time. Punches are easily changeable, long-lasting, and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes. The Angle Shear blades have 2 corner radii and are made of precision tool steel with 2 cutting edges, while the Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges. The exclusive PowerLink System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools.

ELITE 110/65 Ton Ironworker 230V, 1Ph, with PowerLink

Features & Benefits

  • Adjustable electric stoke control
  • ANSI B11.5-1988(02) Compliant Guarding
  • Bright LED lights increases visibility
  • Central Lubrication System simplifies Ironworker maintenance
  • Durable, heavy-duty Made in USA steel construction
  • ETL Certified Controls
  • Integrated Lock-out/Tag-out system with multiple location E-Stops (foot pedal, control panel & Punch workstation) for added safety
  • The nickel-plated Premium Gauging Tables provide a large work area and add precision, speed and repeatability to your punch projects
  • Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
SAP EAN Number Code (UPC)731325562934
Model NumberELT110-3P575
SAP Country of OriginUSA
SAP Length48
SAP Height72
SAP Width96
SAP Gross Weight8580
SAP Net weight8580
Accessories ProductsAC0125,AC0800,AC0900,AC0903,AC0905,AC0925,AC0925T,AC1000,AC1001,AC1009,AC1010,AC1017,AC1023-3,AC1024,AC1033,AC1034,AC1035,AC1051,AC1055-2,AC1074,AC1075,AC1098,AC1099,AC1911,AC1912,AC1913,AC1914-4,PD1000,PR135
Amps - jpw_amps36
Angle Shear Max Capacity 3/8"5 x 5
Angle Shear Max Capacity (In.)5 x 5 x 3/8
Angle Shear Work Height (In.)44
Coper Notcher Max Capacity (In.)2-1/2 x 6 x 3/8
Coper Notcher Work Height (In.)35-5/8
End User SellableNo
Flat Bar Shear Max Capacity 1"4
Flat Bar Shear Max Capacity 1/2"14
Flat Bar Shear Max Capacity 3/8"24
Flat Bar Shear Max Round Capacity (In.)1
Flat Bar Shear Max Round (In)1
Flat Bar Shear Max Square (In)1
Flat Bar Shear Rating (Tons)65
Flat Bar Shear Work Height (In.)33-1/2
Hydraulics (GPM)10-1/2
Hydraulics (PSI)3000.0000
Hydraulics (PSI) (Unit)Pound per square inch
Hydraulic Pump (GPM)10-1/2
Hydraulic Reservoir (Gal.)17.0000
Hydraulic Reservoir (Gal.) (Unit)Gallon
Item Display Order1.0000
Motor Amps36
Motor (HP)7.5 HP 1 ~ 230V
Motor Speed (RPM)1765
Package NameThe Edwards ELITE 110/65 Ton Ironworker, Dual Operator, ELITE, Universal Open Tooling Station, Hydraulic Accessory Power Pack
Product Dimensions (In.)61-9/16 x 44-7/8 x 65-1/8
Prop 65Cancer and Reproductive Harm
Punch Open Height (In)9-3/4
Punch Shut Height (In)6-9/16
Reservoir (Gal.)17
Valve Pressure (PSI)3000.0000
Valve Pressure (PSI) (Unit)Pound per square inch

Part #: ELT11065-1P230

Price: $59,939.00
