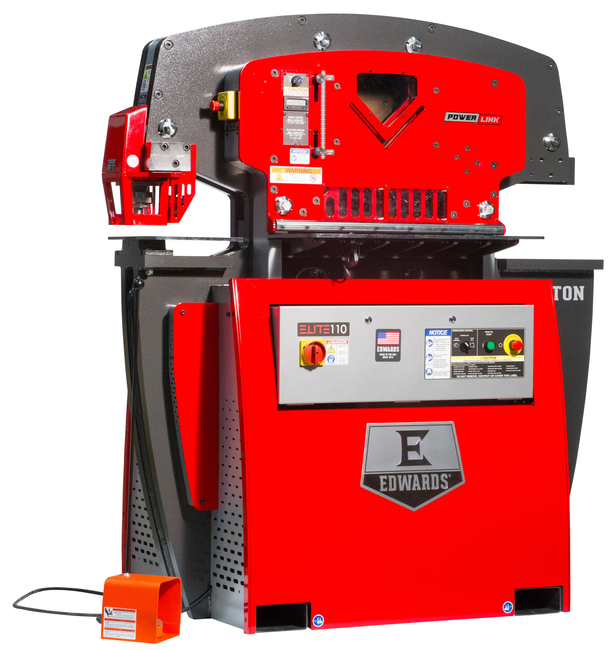

ELITE 110T IRONWORKER - 3PH, 460V

Elite 110 with PowerLink

<< Back

ELITE 110T IRONWORKER - 3PH, 460V
ELITE 110T IRONWORKER - 3PH, 460VELITE 110T IRONWORKER - 3PH, 460VELITE 110T IRONWORKER - 3PH, 460V
ELITE 110T IRONWORKER - 3PH, 460VELITE 110T IRONWORKER - 3PH, 460VELITE 110T IRONWORKER - 3PH, 460V

The ELITE 110 Ton offers four workstations and affords the ability to customize the open workstation with one of 13 attachments, and 14 additional accessories available to further improve productivity. This compact machine has premium features that maximize efficiency and allow for fast and easy transitions between fabrication operations: punch, shear, notch, bend, or cope all in one machine. The Hydraulic Hold-Down, Roller Encoder Measuring System, Swing-Away Stripper Assembly, and Quick Change Punch Assembly are designed to increase accuracy and save production time. Punches are easily changeable, long-lasting, and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes. The Angle Shear blades have 2 corner radii and are made of precision tool steel with 2 cutting edges, while the Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges. The exclusive PowerLink System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools.

ELITE 110 Ton Ironworker 460V, 3Ph, with PowerLink

Features & Benefits

  • Adjustable electric stoke control
  • ANSI B11.5-1988(02) Compliant Guarding
  • Bright LED lights increases visibility
  • Central Lubrication System simplifies Ironworker maintenance
  • Durable, heavy-duty Made in USA steel construction
  • ETL Certified Controls
  • Integrated Lock-out/Tag-out system with multiple location E-Stops (foot pedal, control panel & Punch workstation) for added safety
  • The nickel-plated Premium Gauging Tables provide a large work area and add precision, speed and repeatability to your punch projects
  • Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
SAP EAN Number Code (UPC)731325555394
Model NumberELT110-3P460
SAP Country of OriginUSA
SAP Length60
SAP Height69
SAP Width67
SAP Gross Weight5380
SAP Net weight5272
Accessories ProductsAC0125,AC0800,AC0900,AC0903,AC0905,AC0925,AC0925T,AC1000,AC1001,AC1009,AC1010,AC1017,AC1023-3,AC1024,AC1033,AC1034,AC1035,AC1051,AC1055-2,AC1074,AC1075,AC1098,AC1099,AC1911,AC1912,AC1913,AC1914-4,PD1000,PR135
Amps - jpw_amps11
Angle Shear Max Capacity (In.)6 x 6 x 1/2
End User SellableNo
Flat Bar Shear Max Round Capacity (In.)1-1/4
Hydraulics (GPM)10-1/2
Hydraulics (PSI)3000.0000
Hydraulics (PSI) (Unit)Pound per square inch
Hydraulic Reservoir (Gal.)17.0000
Hydraulic Reservoir (Gal.) (Unit)Gallon
Item Display Order5.0000
Open Workstation Throat Depth (In.)15-1/2
Open Workstation Work Height (In.)39-3/16
Package NameEdwards ELITE 110 Ton Ironworker, ELITE, Universal Open Tooling Station, Hydraulic Accessory Power Pack
Product Dimensions (In.)57-1/4 x 42-3/8 x 66-1/16
Prop 65Cancer and Reproductive Harm

Part #: ELT110-3P460

Price: $42,009.00
Quantity:
