1/2SS-1C-20 1/2T ELEC HST 20' LIFT 1PH

Electric Hoists

<< Back

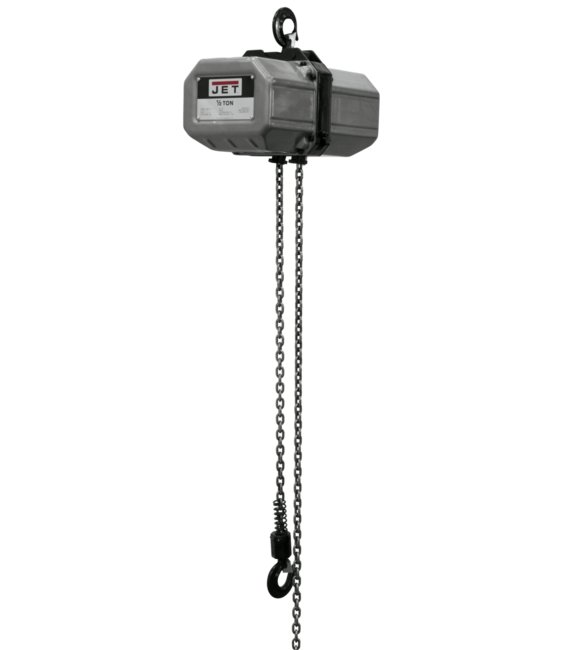

1/2SS-1C-20 1/2T ELEC HST 20' LIFT 1PH

JET SSC Series Electric Hoists combines safety and durability to operate in commercial and industrial applications. All models incorporate a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. They are available in single or three phase configurations to suit your electrical needs. Single phase models have a thermal overload protection design that keeps the hoist from overheating, while the three phase models feature a reverse phase relay that protects the hoist from incorrect wiring. The industry proven DC electro-magnetic brake increases safety by holding the load even when power is interrupted. The maintenance-free gear train incorporates a sealed oil bath, for reliability and durability. The JET SSC Series Electric Hoist is available in ton to 5 ton capacities with standard lifts of 10, 15, and 20 feet (custom lifts available).

1/2SS-1C-20, 1/2-Ton Electric Chain Hoist 1-Phase 20' Lift

Features & Benefits

  • 24 volt push button controller with cable strain relief system for durability and reliability
  • All steel construction
  • NEMA 4X compliant push button control pendants
  • Durable powder coat finish
  • Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability
  • Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling
  • Sealed Gear Train- Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep
  • Thermal overload protection
SAP EAN Number Code (UPC)662755906145
Model Number1/2SS-1C-20
SAP Base Unit of MeasureEA
SAP Commodity Code8425.11.0000
SAP Country of OriginChina
Warranty2 Year
SAP Delivery PlantJNA
SAP Length21
SAP Unit of DimensionIN
SAP Height15
SAP Unit of DimensionIN
SAP Width16
SAP Unit of DimensionIN
SAP Gross Weight125
SAP Weight UnitLBS
SAP Net weight117
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products1/2SS-3C-LMA,152221,152421,252005,252300,252301,252302,252330,252331,252332,262005,272705
Capacity (Lbs.)1000.0000
Capacity (Lbs.) (Unit)Pound
Duty Cycle (%)25
Duty Cycle RatingH3
End User SellableNo
Item Display Order273.0000
Lifting Speed (FPM)19
Lift (Ft.)20.0000
Lift (Ft.) (Unit)Feet
Load Capacity (Tons)1/2
Load Chain Dimensions dia/mm)6.3 x 19
Max. Number of Starts (Per Hr.)150
Max. On Time (Min. / Hr.)15
Motor (HP)7/8 HP, 115 / 230V, 1 Ph
Motor Phase1
Overload ProtectionYes
Prop 65Cancer and Reproductive Harm
Sell Sheets Asset Collection[121200_ss_pdf],[121200_ss_en_pdf]
Weight (Lbs.)110.0000
Weight (Lbs.) (Unit)Pound
Overall Width (In.)10.24
Motor Current (Amps)8
Headroom (In.)20-3/16

Part #: 121200

Price: $2,942.00
