L100-200WO-10 2T CHN HST 10' LFT&OLP

JET L-100 Series Hand Chain Hoist is designed with all steel construction and integrates safety, durability and innovation enabling it to operate in the most demanding industrial environments. Safety features such as the slip clutch style overload protection that prevents the hoist from lifting damaging loads beyond its rated capacity. The JET exclusive innovation showcased in the patented fused brake system reduces maintenance costs and limits downtime. JET is so confident in the durability of the fused brake design we back it with an industry leading lifetime replacement warranty. The JET L-100 is available in ton to 20 ton capacities and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). Regardless of how harsh the environment, the JET L-100 Series Hand Chain Hoist is engineered to perform.

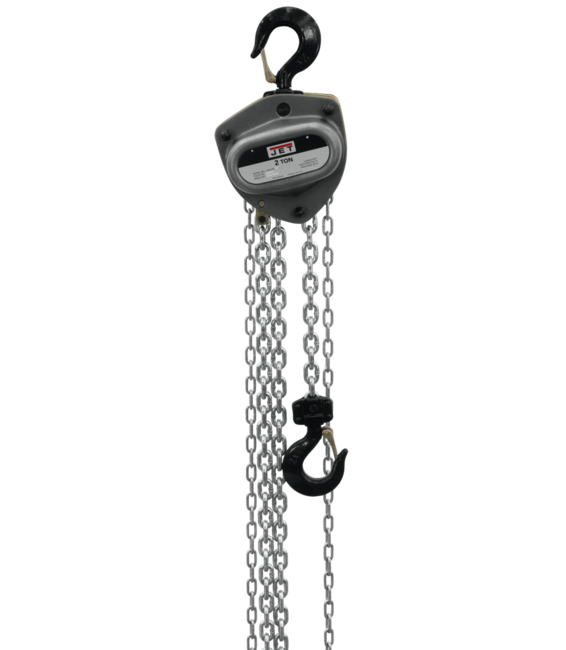

L-100-200WO-10, 2-Ton Hand Chain Hoist With 10' Lift & Overload Protection

Features & Benefits

  • Double sealed ball bearings support the load sheave to increase efficiency and promote smooth operation
  • Grade 100, corrosive resistant plated load chain is a smaller, more compact link that is 20% stronger than Grade 80 load chain
  • Heat Treated Load Plates
  • Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
  • Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist
  • Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
  • The lightweight design and smaller body are ideal for confined areas and low headroom applications
  • Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
SAP EAN Number Code (UPC)662755995408
Model NumberL-100-200WO-10
SAP Base Unit of MeasureEA
SAP Commodity Code8425.19.0000
SAP Country of OriginChina
WarrantyLifetime
SAP Delivery PlantJNA
SAP Length12.2
SAP Unit of DimensionIN
SAP Height9.45
SAP Unit of DimensionIN
SAP Width7.68
SAP Unit of DimensionIN
SAP Gross Weight46
SAP Weight UnitLBS
SAP Net weight44
SAP Weight UnitLBS
SAP Transportation GroupParcel
Accessories Products202720,252020,252720,262020
Hand Chain To Lift Load 1 ft.70
Capacity (Lbs.)4400.0000
Capacity (Lbs.) (Unit)Pound
End User SellableNo
Force Required to Move Maximum Load (Lbs)79.0000
Force Required to Move Maximum Load (Lbs) (Unit)Pound
Item Display Order45.0000
Lift (Ft.)10.0000
Lift (Ft.) (Unit)Feet
Load Capacity (Tons)2
Load Chain Dimensions dia/mm)8 X 24
Overload ProtectionYes
Prop 65Cancer and Reproductive Harm
Sell Sheets Asset Collection[105100_ss_pdf],[105100_ss_en_pdf]
Weight (Lbs.)44.0000
Weight (Lbs.) (Unit)Pound
Lbs. of Pull to Lift Capacity79.0000
Headroom (In.)14-3/4

Part #: 105100

Price: $529.38
