L100-500WO-30 5T CHN HST 30' LFT&OLP

JET L-100 Series Hand Chain Hoist is designed with all steel construction and integrates safety, durability and innovation enabling it to operate in the most demanding industrial environments. Safety features such as the slip clutch style overload protection prevents that the hoist from lifting damaging loads beyond its rated capacity. The JET exclusive innovation showcased in the patented fused brake system reduces maintenance costs and limits downtime. JET is so confident in the durability of the fused brake design we back it with an industry leading lifetime replacement warranty. The JET L-100 is available in ton to 20 ton capacities and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). Regardless of how harsh the environment, the JET L-100 Series Hand Chain Hoist is engineered to perform.

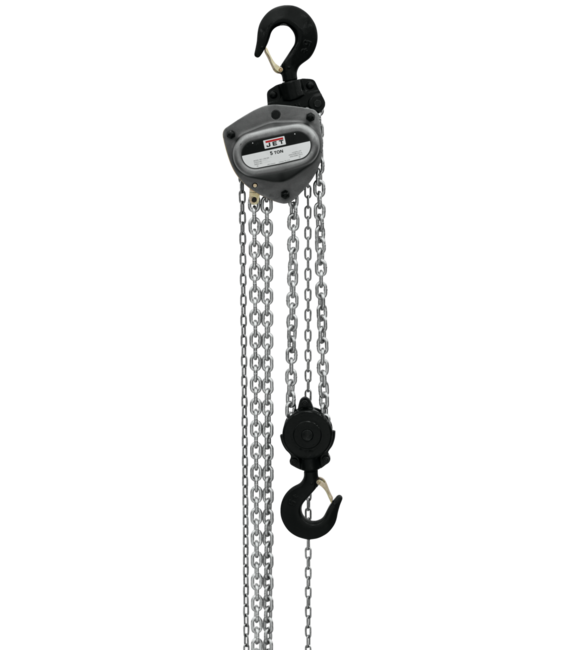

L-100-500WO-30, 5-Ton Hand Chain Hoist With 30' Lift & Overload Protection

Features & Benefits

  • Double sealed ball bearings support the load sheave to increase efficiency and promote smooth operation
  • Grade 100, corrosive resistant plated load chain is a smaller, more compact link that is 20% stronger than Grade 80 load chain
  • Heat Treated Load Plates
  • Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
  • Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist
  • Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
  • The lightweight design and smaller body are ideal for confined areas and low headroom applications
  • Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
SAP EAN Number Code (UPC)731325172317
Model NumberL-100-500WO-30
SAP Base Unit of MeasureEA
SAP Commodity Code8425.19.0000
SAP Country of OriginChina
WarrantyLifetime
SAP Delivery PlantJNA
SAP Length20.2
SAP Unit of DimensionIN
SAP Height13.06
SAP Unit of DimensionIN
SAP Width15.92
SAP Unit of DimensionIN
SAP Gross Weight168
SAP Weight UnitLBS
SAP Net weight165
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products202750,252050,252750,262050
Hand Chain To Lift Load 1 ft.198
Capacity (Lbs.)11000.0000
Capacity (Lbs.) (Unit)Pound
End User SellableNo
Item Display Order56.0000
Lift (Ft.)30.0000
Lift (Ft.) (Unit)Feet
Load Capacity (Tons)5
Load Chain Dimensions dia/mm)9 x 27
Prop 65Cancer and Reproductive Harm
Weight (Lbs.)149.0000
Weight (Lbs.) (Unit)Pound
Lbs. of Pull to Lift Capacity75.0000
Headroom (In.)23-5/8

Part #: 208130
