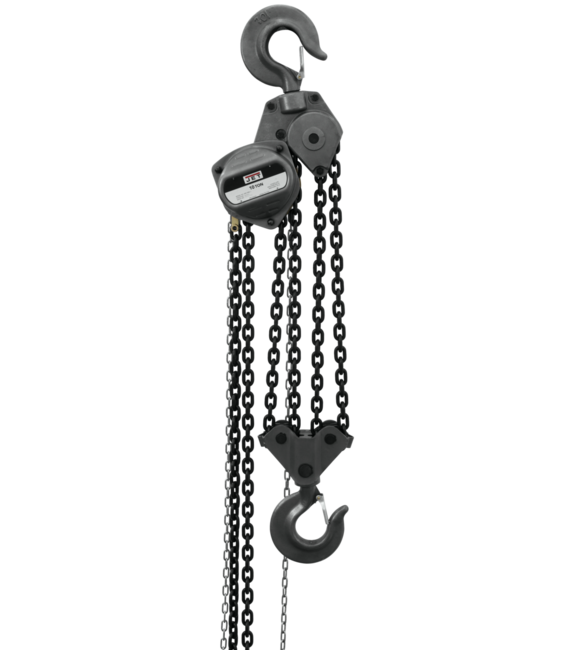

S90-1000-30 10T CHN HST 30' LIFT

JET S90 Series Hand Chain Hoist is designed with all steel construction and were designed with reliability and durability to perform in light-duty industrial applications. Easily maintained and serviced, the JET S90 is available in capacities from ton to 10 ton and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). The JET S90 is the ideal contractor grade hoist.

S90-1000-30, 10-Ton Hand Chain Hoist With 30' Lift

Features & Benefits

  • Grade 80 black oxide coated load chain for added durability
  • Heat Treated Load Plates
  • Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
  • Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist
  • Needle bearings support the load sheave to increase efficiency and promote smooth operation
  • Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
  • The smaller body and lightweight design are ideal for confined areas and low headroom applications
  • The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety
SAP EAN Number Code (UPC)731325219067
Model NumberS90-1000-30
SAP Base Unit of MeasureEA
SAP Commodity Code8425.19.0000
SAP Country of OriginChina
WarrantyLifetime
SAP Delivery PlantJNA
SAP Length22
SAP Unit of DimensionIN
SAP Height16.3
SAP Unit of DimensionIN
SAP Width19.2
SAP Unit of DimensionIN
SAP Gross Weight344
SAP Weight UnitLBS
SAP Net weight325
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products252060
Hand Chain To Lift Load 1 ft.357
Capacity (Lbs.)22000.0000
Capacity (Lbs.) (Unit)Pound
End User SellableNo
Item Display Order28.0000
Lift (Ft.)30.0000
Lift (Ft.) (Unit)Feet
Load Capacity (Tons)10
Load Chain Dimensions dia/mm)10 x 30
Overload ProtectionNo
Prop 65Cancer and Reproductive Harm
Weight (Lbs.)349.0000
Weight (Lbs.) (Unit)Pound
Lbs. of Pull to Lift Capacity96.0000
Headroom (In.)30

Part #: 101963

Price: $2,732.58
