J-A5818 15" VS FLOOR DRILL PRESS

Step Pulley & Variable Speed Drill Presses

<< Back

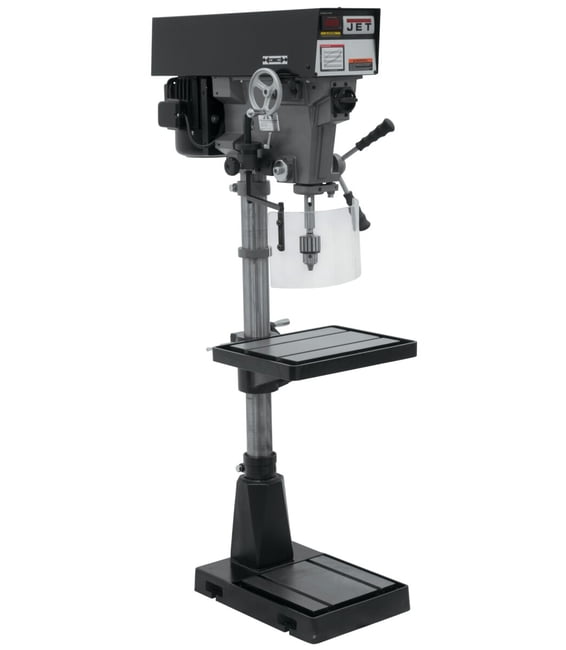

J-A5818 15" VS FLOOR DRILL PRESS
J-A5818 15" VS FLOOR DRILL PRESSJ-A5818 15" VS FLOOR DRILL PRESSJ-A5818 15" VS FLOOR DRILL PRESS
J-A5818 15" VS FLOOR DRILL PRESSJ-A5818 15" VS FLOOR DRILL PRESSJ-A5818 15" VS FLOOR DRILL PRESS

These JET Drill Presses use a variable-speed motor with the stepped-pulley system, and come equipped with a continuously variable transmission. This enables use at a wide range of speeds, as well as the ability to change speed during operation. A scale-marked hand wheel that matches the desired machine speed is mounted to a reduction gearing system for precise operator control. This adjusts the gearing ratio between the motor's fixed pulley and the output shaft's variable pulley, changing the speed of the chuck. A tensioner pulley is implemented in the belt transmission to take up or release the slack in the belt as the speed changes.

J-A5818 15" Variable Speed Floor Model Drill Press 230/460V

Features & Benefits

  • 1/2" Drill chuck and arbor included
  • 3" column diameter for maximum head support
  • 6" stroke for deep hole application
  • Full bearing support on quill for maximum spindle stiffness
  • Handwheel speed adjustment of 400 to 5,000 RPM
  • Large 2-1/4" quill for greater accuracy
SAP EAN Number Code (UPC)662756092700
Model NumberJ-A5818
SAP Base Unit of MeasureEA
SAP Commodity Code8459.29.0020
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length31
SAP Unit of DimensionIN
SAP Height70
SAP Unit of DimensionIN
SAP Width31
SAP Unit of DimensionIN
SAP Gross Weight388
SAP Weight UnitLBS
SAP Net weight308
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products561702,561704,561706,561708,561709
Base Dimensions (In.)20-7/16 x 14-3/16
Base Work Table (In.)12-1/8 x 11-13/16
Column Diameter (In.)3
Distance Column to Spindle (In.)7-1/2
Drilling Capacity Cast Iron (In.)5/8
Drilling Capacity Mild Steel (In.)1/2
Drills to Center of Circle (In.)15.0000
Drills to Center of Circle (In.) (Unit)Inch
End User SellableNo
Item Display Order8.0000
Motor (HP)1 HP, 230/460V, 3Ph
Overall Dimensions (L x W x H) (In.)30 x 20 x 71
Prop 65Cancer and Reproductive Harm
Range of Spindle Speeds (RPM)400 - 5,000
Spindle Distance to Base (In.)44-1/2
Spindle Distance to Table (Max.) (In.)25-3/4
Spindle Taper (In. x TPI) (English United States, Ecommerce)MT-2
Spindle Travel (In.)6
Style (Type)Variable
Table Size (L x W) (In.)15 x 18
Table Travel (In.)16-3/4
T-Slots Number and Size (In.)2 and 1/2
T-Slot Centers (In.)5-5/16
Weight (Lbs.)426.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)90

Part #: 354551

Price: $2,489.00
