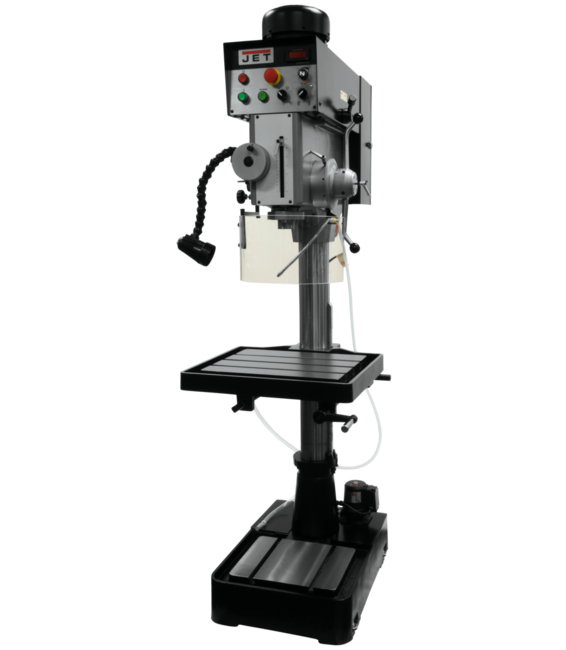

JDP20EVST-460-PDF 20" EVS GH PWRFEED 4

Accuracy, stability and versatility are the benchmark features of the JET 20" Drill Presses. This high-quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. The spindle head is supported by high quality ball bearings. Designed to permit continuous speed adjustment - even during operation. Forward and reverse tapping capabilities, an emergency stop, and a heavy-duty casted head are but a few of the features JET includes to enhance overall use and accuracy. JET backs their machines with the industry leading Two Year Warranty and are CSA/CUS Certified.

JDP-20EVST-460-PDF, 2HP, 1Ph, 460V, with 3Ph Power Down Feed

Features & Benefits

  • CSA Coolant System
  • Front Mounted LED Spindle RPM Readout
  • Front mounted positive control depth stop
  • Heavy-duty steel column for increased precision and rigidity
  • High torque at all speeds both forward and reverse
  • Large Hand Grips designed with the users comfort in mind
  • Large precision ground T-Slot production table for easy set ups
  • Latest AC Inverter Variable Speed Technology
SAP EAN Number Code (UPC)731325503944
Model NumberJDP20EVST-460-PDF
SAP Base Unit of MeasureEA
SAP Commodity Code8465.95.0060
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length42.5
SAP Unit of DimensionIN
SAP Height78.74
SAP Unit of DimensionIN
SAP Width27.16
SAP Unit of DimensionIN
SAP Gross Weight847
SAP Weight UnitLBS
SAP Net weight847
SAP Weight UnitLBS
SAP Transportation GroupLTL
Base Dimensions (In.)27 x 19
Column Diameter (In.)4-1/2
Distance Column to Spindle (In.)10-7/16
Drilling Capacity Mild Steel (In.)2
Drills to Center of Circle (In.)20.0000
Drills to Center of Circle (In.) (Unit)Inch
End User SellableNo
Inverter TypeB Type 230V 3Ph
Item Display Order22.0000
Motor (HP)2 HP, 460V 3ph
Overall Dimensions (L x W x H) (In.)42.5 x 27.16 x 78.74
Prop 65Cancer and Reproductive Harm
Range of Spindle Speeds (RPM)60 - 2,000(60-540/225-2000)
Spindle Taper (In. x TPI) (English United States, Ecommerce)MT-4
Spindle Travel (In.)6
Style (Type)Variable Speed
Table Size (L x W) (In.)22x18-3/4
Table Travel (In.)20
Tapping Capacity Cast Iron (In.)1
Tapping Capacity Mild Steel (In.)1
T-Slot Centers (In.)7-7/16
Weight (Lbs.)847.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)154

Part #: 354246

Price: $7,859.00
