Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

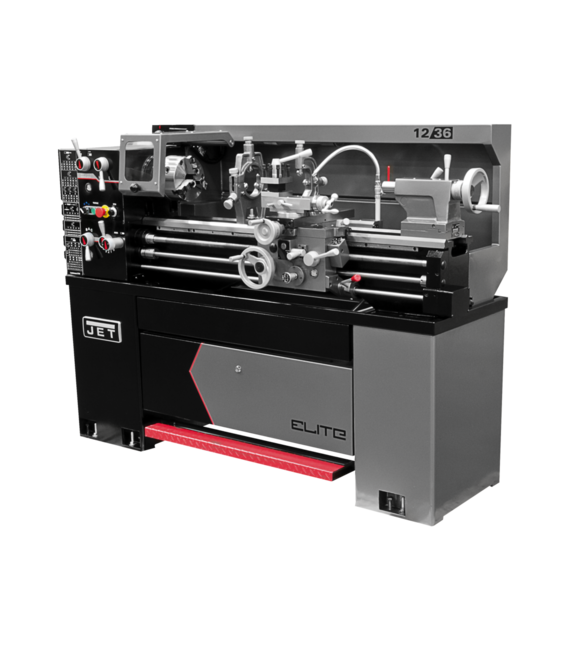

E-1236VS With ACU-RITE 303 CSS DRO

Features & Benefits

  • 4-Position Carriage Stop
  • Chuck guards are standard equipment on all ELITE lathes for increased safety
  • Front facing chip pan allows easy chip removal from the front of the machine
  • Hardened and ground gears in headstock reduce vibration and deflection
  • Integrated locking tool cabinet in stand on 12" Lathe
  • Inverter drive system provides infinitely variable spindle speeds
  • LED RPM readout allows for precise turning speeds
  • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
SAP EAN Number Code (UPC)731325282320
Model NumberE-1236VS
SAP Base Unit of MeasureEA
SAP Country of OriginTaiwan
Warranty3 Year Elite
SAP Delivery PlantJNA
SAP Gross Weight1477
SAP Weight UnitLBS
SAP Net weight1213
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products650295,892005,892006,892007,892058,892092
BOM Products892000,T303-0636JCSS
30 Point inspectionJET Elite 30 Point
Amperage Draw @ 230V 3Ph19
Amperage Draw @ 230V 1Ph27
Compound Slide Travel (In.)3-1/2
DriveEVS
End User SellableNo
Item Display Order51.0000
Length of Gap (In.)9-1/2
Max Tool Size (In.)1/2 x 1/2
Motor (HP)2 HP, 230V, 1 or 3 Ph
Number of Inch Threads34.0000
Number of Longitudinal and Cross Feed Rates50
Number of Metric Threads33.0000
Overall Dimensions (L x W x H) (In.)71 x 30 x 60
Prop 65Cancer and Reproductive Harm
Range of Cross Feeds (IPR)0.0005 - 0.015
Range of Inch Threads (TPI)2 - 56
Range of Longitudinal Feeds (IPR)0.0016 - 0.046
Range of Metric Threads0.5 - 12
Range of Spindle Speeds (RPM)0 - 2,000
Size (English United States, Ecommerce)12 x 36
Spindle Bore (In.)1-9/16
Spindle Mount (English United States, Ecommerce)D1-4
Spindle Taper with Sleeve (English United States, Ecommerce)MT-5
Steady Rest Capacity (In.)1/4 - 2-1/2
Style (Type)ELITE EVS
Swing Over Bed (In.)12
Swing Over Cross Slide (In.)7-5/16
Swing Through Gap (In.)17-1/2
Tailstock Spindle Travel (In.)4
Taper in Tailstock SpindleMT-3
Weight (Lbs.)1212.0000
Weight (Lbs.) (Unit)Pound
Width of Bed (In.)7-1/2

Part #: 892315

Price: $18,949.00
