E-1236VS W 303 CSS & CC
E-1236VS W 303 CSS & CCE-1236VS W 303 CSS & CCE-1236VS W 303 CSS & CC
E-1236VS W 303 CSS & CCE-1236VS W 303 CSS & CCE-1236VS W 303 CSS & CC
E-1236VS W 303 CSS & CCE-1236VS W 303 CSS & CCE-1236VS W 303 CSS & CC
E-1236VS W 303 CSS & CCE-1236VS W 303 CSS & CCE-1236VS W 303 CSS & CC
E-1236VS W 303 CSS & CCE-1236VS W 303 CSS & CCE-1236VS W 303 CSS & CC

Compact, powerful, perfection. These lathes have a compact footprint and feature certified Meehanite castings, an electromagnetic brake, 3-jaw chuck, ball bearing-mounted steady and follow rests, and CNC-style lighting with enclosed splash guard. The two-speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM. Perfect for schools, small shops, and engineering labs, these lathes are CSA/CUS Certified and truly are Elite!

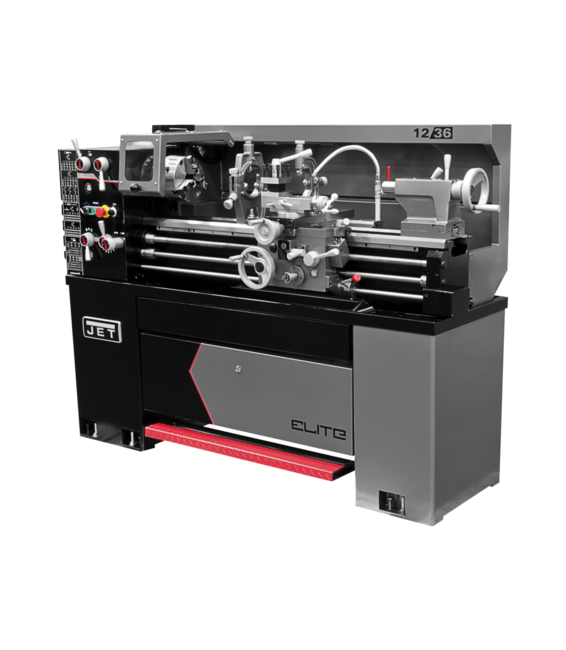

E-1236VS With ACU-RITE 303 CSS DRO With Collet Closer

Features & Benefits

  • 4-Position Carriage Stop
  • Chuck guards are standard equipment on all ELITE lathes for increased safety
  • Front facing chip pan allows easy chip removal from the front of the machine
  • Hardened and ground gears in headstock reduce vibration and deflection
  • Integrated locking tool cabinet in stand on 12" Lathe
  • Inverter drive system provides infinitely variable spindle speeds
  • LED RPM readout allows for precise turning speeds
  • Overload clutch at feed shaft prevents the carriage from crashing into the chuck
  • Steady Rest-Ball Bearing
  • Variable spindle speeds
SAP EAN Number Code (UPC)731325282344
Model NumberE-1236VS
SAP Base Unit of MeasureEA
SAP Country of OriginTaiwan
Warranty3 Year Elite
SAP Delivery PlantJNA
SAP Gross Weight1477
SAP Weight UnitLBS
SAP Net weight1213
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products650295,892005,892006,892007,892058,892092
BOM Products892000,892006,T303-0636JCSS
30 Point inspectionJET Elite 30 Point
Amperage Draw @ 230V 3Ph19
Amperage Draw @ 230V 1Ph27
Compound Slide Travel (In.)3-1/2
DriveEVS
End User SellableNo
Item Display Order57.0000
Length of Gap (In.)9-1/2
Max Tool Size (In.)1/2 x 1/2
Motor (HP)2 HP, 230V, 1 or 3 Ph
Number of Inch Threads34.0000
Number of Longitudinal and Cross Feed Rates50
Number of Metric Threads33.0000
Overall Dimensions (L x W x H) (In.)71 x 30 x 60
Prop 65Cancer and Reproductive Harm
Range of Cross Feeds (IPR)0.0005 - 0.015
Range of Inch Threads (TPI)2 - 56
Range of Longitudinal Feeds (IPR)0.0016 - 0.046
Range of Metric Threads0.5 - 12
Range of Spindle Speeds (RPM)0 - 2,000
Size (English United States, Ecommerce)12 x 36
Spindle Bore (In.)1-9/16
Spindle Mount (English United States, Ecommerce)D1-4
Spindle Taper with Sleeve (English United States, Ecommerce)MT-5
Steady Rest Capacity (In.)1/4 - 2-1/2
Style (Type)ELITE EVS
Swing Over Bed (In.)12
Swing Over Cross Slide (In.)7-5/16
Swing Through Gap (In.)17-1/2
Tailstock Spindle Travel (In.)4
Taper in Tailstock SpindleMT-3
Weight (Lbs.)1212.0000
Weight (Lbs.) (Unit)Pound
Width of Bed (In.)7-1/2

Part #: 892317

Price: $20,799.00
