E-1440VS W/ 303 DRO
E-1440VS W/ 303 DROE-1440VS W/ 303 DROE-1440VS W/ 303 DRO
E-1440VS W/ 303 DROE-1440VS W/ 303 DROE-1440VS W/ 303 DRO
E-1440VS W/ 303 DROE-1440VS W/ 303 DROE-1440VS W/ 303 DRO
E-1440VS W/ 303 DROE-1440VS W/ 303 DROE-1440VS W/ 303 DRO
E-1440VS W/ 303 DROE-1440VS W/ 303 DROE-1440VS W/ 303 DRO

Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.

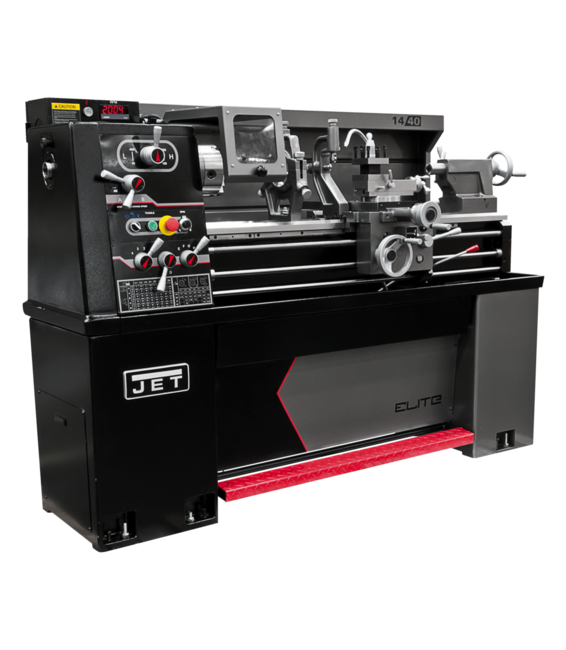

E-1440VS With ACU-RITE 303 DRO

Features & Benefits

  • 4-Position Carriage Stop
  • Chuck guards are standard equipment on all ELITE lathes for increased safety
  • Front facing chip pan allows easy chip removal from the front of the machine
  • Hardened and ground gears in headstock reduce vibration and deflection
  • Inverter drive system provides infinitely variable spindle speeds
  • LED RPM readout allows for precise turning speeds
  • Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
SAP EAN Number Code (UPC)731325282825
Model NumberE-1440VS
SAP Base Unit of MeasureEA
SAP Country of OriginTaiwan
Warranty3 Year Elite
SAP Delivery PlantJNA
SAP Gross Weight1940
SAP Weight UnitLBS
SAP Net weight1653
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products650295,892007,892035,892036,892037,892058,892093
BOM Products892030,T303-1240J
30 Point inspectionJET Elite 30 Point
Amperage Draw @ 230V 3Ph9
Compound Slide Travel (In.)4
Cross Slide Travel (In.)7.0000
Cross Slide Travel (In.) (Unit)Inch
DriveEVS
End User SellableNo
Item Display Order37.0000
Length of Gap (In.)9
Motor (HP)3 HP, 230V, 3Ph
Number of Inch Threads40.0000
Number of Longitudinal and Cross Feed Rates80
Number of Metric Threads22.0000
Overall Dimensions (L x W x H) (In.)77 x 30 x 58
Prop 65Cancer and Reproductive Harm
Range of Cross Feeds (IPR)0.0003 - 0.01
Range of Inch Threads (TPI)4 - 112
Range of Longitudinal Feeds (IPR)0.0012 - 0.0294
Range of Metric Threads0.45 - 7.5
Range of Spindle Speeds (RPM)0 - 2,200
Size (English United States, Ecommerce)14 x 40
Spindle Bore (In.)1-1/2
Spindle Mount (English United States, Ecommerce)D1-4
Spindle Taper with Sleeve (English United States, Ecommerce)MT-5
Steady Rest Capacity (In.)1/4 - 2-3/4
Style (Type)ELITE EVS
Swing Over Bed (In.)14
Swing Over Cross Slide (In.)8-5/8
Swing Through Gap (In.)20
Tailstock Spindle Travel (In.)4-3/4
Taper in Tailstock SpindleMT-3
Weight (Lbs.)1653.0000
Weight (Lbs.) (Unit)Pound
Width of Bed (In.)8-1/2

Part #: 892461

Price: $23,805.80
