EVS-949- 2X DP700 & X PWRFD

Elite offers world class mills fully loaded with features. With Certified Meehanite castings, an electronic spindle brake that prevents accidental startups, and a hardened and ground table, this mill provides reliability and durability for milling a diverse variety of materials. Our patented vari-disc key provides up to 10 times the wear resistance than aluminum or brass keys. The fully hardened Chromium Molybdenum spindle meets strict tolerance requirements and utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry-leading spindle taper runout of 0.00012". The Y- and Z-axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements. Additionally, every 30 minutes, your Elite mill is automatically lubricated with a flow of 3 to 6 cc/cy. For operator safety, all Elite Mills are CSA/CUS Certified and come with a spindle safety guard.

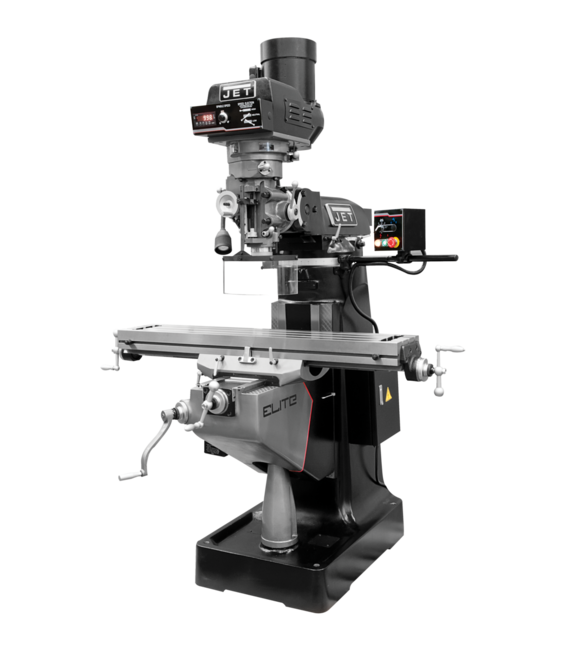

EVS-949 Mill with 2-Axis Newall DP700 DRO and X-Axis JET Powerfeed

Features & Benefits

  • Ball bearing support of the motor shaft ensures proper loading, support, and alignment for quiet, accurate operation at any speed
  • Heat treated and polished lead screws are supported by thrust bearings ensuring smooth, incremental movements of the table under load
  • Seamless, one-piece, steel quill is induction hardened and chromed for increased strength and precision ground for greater accuracy
  • Stainless steel Y-Axis way cover provides extra years of protection over the standard sheet metal cover
  • The mounted control box houses major mill functions as well as an emergency stop button
  • The table and saddle backlash is controlled by an advanced double nut design that eliminates end-play for precisely controlled lateral movements
  • Variable speed pulleys are ground and multiplane dynamically balanced, reducing vibration and ensuring smooth speed transitions
SAP EAN Number Code (UPC)731325287646
Model NumberETM-949EVS
SAP Base Unit of MeasureEA
SAP Country of OriginTaiwan
Warranty3 Year Elite
SAP Delivery PlantJNA
SAP Gross Weight2450
SAP Weight UnitLBS
SAP Net weight2200
SAP Weight UnitLBS
SAP Transportation GroupLTL-Dock Del Only
Accessories Products350182,350184,350185,350186,350195,350196,351187K,650210,650211,660012,894092
BOM Products350194,894050,J1236DP700M
30 Point inspectionJET Elite 30 Point
Amperage Draw @ 230V 3Ph18
Collet Capacity1/8 - 7/8
Distance Spindle to Column (Max.) (In.)21-2/5
End User SellableNo
Item Display Order36.0000
Max Distance Spindle to Table (In.)18-3/4
Motor (HP)3 HP, 230V, 3 Ph
Number of Axis2
Overall Dimensions (L x W x H) (In.)68 x 63 x 84
PowerfeedX-Axis
Prop 65Cancer
Quill Diameter (In.)3-3/8
Quill Down Feed Rates (IPR)0.0015 - 0.003 - 0.006
Range of Spindle Speeds (RPM)60 - 5,000
Spindle Taper (In. x TPI) (English United States, Ecommerce)R-8
Spindle Travel (In.)5
Style (Type)Variable Speed
Table Cross Travel (In.)12
Table Longitudinal Travel (In.)36
Table Size (L x W) (In.)9 x 49
Travel of Knee (In.)16
Travel of Ram (In.)14
T-Slot Centers (In.)2-1/2
Weight (Lbs.)2300.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)550

Part #: 894352

Price: $28,729.00
