ECB-1833DMEVS 18"EVS DUALMITER 230V

Name: ECB-1833DMEVS 18"EVS DUALMITER 230V
Brand: Jet
SKU: 891170
Price: 50199.00 USD
Availability: InStock

Horizontal Semi-Automatic

<< Back

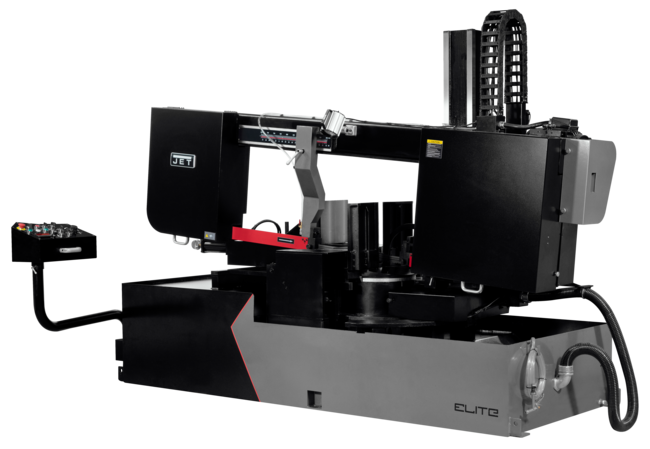

With features unmatched, the JET Dual Mitering , Semi-Automatic, EVS Bandsaw is the perfect solution for cutting structural steel with ease.

ECB-1833DMEVS-230, 18 x 31" Semi-Automatic Dual Mitering EVS Bandsaw 230V, 3Ph

Features & Benefits

Electronic variable speed from 50-297 SFPM
Heavy duty construction reduces vibration and deflection
Hydraulic assist descent control
Auto table swivel
Blade tension gauge helps to ensure the blade is in the correct cutting position
Semi-auto on saw bow lifting and hydraulic vise
Swing away control box allows Operator to use in any position

SAP EAN Number Code (UPC)	731325806830
Model Number	ECB-1833DMEVS-230
SAP Base Unit of Measure	EA
SAP Commodity Code	8461.50.8090
SAP Country of Origin	Taiwan
Warranty	3 Year Elite
SAP Length	136
SAP Unit of Dimension	IN
SAP Height	91
SAP Unit of Dimension	IN
SAP Width	45
SAP Unit of Dimension	IN
SAP Gross Weight	5500
SAP Weight Unit	LBS
SAP Net weight	5060
SAP Weight Unit	LBS
SAP Transportation Group	LTL-Dock Del Only
Accessories Products	414125,414126,414127,891171,891172,891173
Blade Size (In.)	1.61 x 0.051 x 240
30 Point inspection	JET Elite 30 Point
Bed Height (In.)	33-15/32
Blade Length (In.)	240
Blade Speeds Metal (SFPM)	50.3000
Blade Speeds (SFPM)	50 - 300
Blade Speed (SFPM)	150-300
Blade Wheel Diameter (In.)	22-53/64
Coolant Pump Motor	1/8HP, 230V, 3PH
Cutting Capacity (W x D) (In.)	18 x 33
Drive	EVS
Easy2 URL	https://content.jettools.com/assets/3d/Elite_Mitering_Bandsaw_.html
Electrics	7-1/2HP, 230V, 3Ph
Floor Space Required (In.)	110 x 74 x 82-5/8
Gross Weight (Lbs)	5500.0000
Gross Weight (Lbs) (Unit)	Pound
Item Display Order	10.0000
Maximum Vise Opening (In.)	31-1/2
Motor (HP)	7-1/2
Net Weight (Lbs.)	5060.0000
Net Weight (Lbs.) (Unit)	Pound
Overall Dimensions (L x W x H) (In.)	110 x 75 x 83
Overall Height (In.)	82-5/8
Prewired Voltage (V.)	230
Prop 65	Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)	18 x 20-13/16
Rectangle at 60 Degrees (In.)	18 x 14-29/32
Rectangle at 90 Degrees (In.)	18 x 31-1/2
Round at 45 Degrees (In.)	18
Round at 60 Degrees (In.)	18
Round at 90 Degrees (In.)	15
Shipping Weight (Lbs.)	5500.0000
Shipping Weight (Lbs.) (Unit)	Pound
Square at 45 Degrees (In.)	18 x 18
Square at 60 Degrees (In.)	15 x 15
Square at 90 Degrees (In.)	18 x 18
Throat Depth (In.)	18
Weight (Lbs.)	5060.0000
Weight (Lbs.) (Unit)	Pound
Mitering Angle Motor	1/5HP, 460V, 3Ph
Oil Pump Motor	1HP, 230V, 3Ph

Part #: 891170

Price: $50,199.00

Quantity:
