A new legacy of saws. Saws that need to demonstrate new kinds of flexibility are counted on to last longer and operate more safely at the same time. Mitering and dual mitering bring an added level of capabilities. All saws come standard with variable speed to fine tune the blade speed fast and easily. Table heights have been optimized, and a completely redesigned swing away control panel. These are the most precise, most durable, and safest bandsaws you could ever put into your shop.

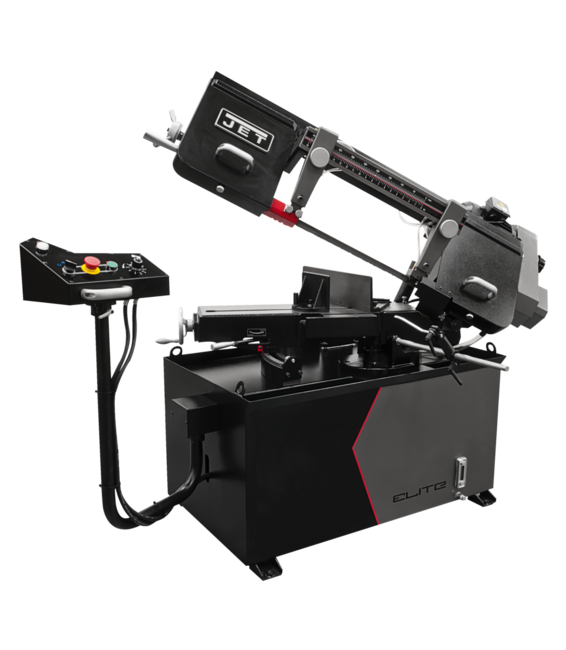

EHB-8VSM, 8 x 13 Variable Speed Mitering Bandsaw

Features & Benefits

  • Adjustable Material Stop
  • Automatic blade shut off switch stops the sawing process
  • Built-in, self-propelled chip brush prevents chip build up in blade guides
  • Integrated pressurized wash hose for easy machine cleaning
  • Large handwheel with blade tensioning gauge accurately measures blade pressure
  • Mitering allows for angle cuts up to 45 right
  • Quick positioning vise for clamping of materials
  • The ELITE swing away panel relocates saw controls to a single location, offering finger-tip operation of most major saw functions
  • To reduce user fatigue and increase safety of the worker, we increased the saw bed height to up to 30 in.
  • Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extends blade life
SAP EAN Number Code (UPC)731325265552
Model NumberEHB-8VSM
SAP Base Unit of MeasureEA
SAP Commodity Code8461.50.8020
SAP Country of OriginTaiwan
Warranty3 Year Elite
SAP Delivery PlantJNA
SAP Gross Weight880
SAP Weight UnitLBS
SAP Net weight770
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products891091
Blade Size (In.)1 x .035 x 114-1/2
Amperage Draw @ 115V 1Ph23
Bed Height (In.)30
Blade Length (In.)114-1/2
Blade Speeds (SFPM)82 - 310
Blade Speed (SFPM)82-310
Blade Wheel Diameter (In.)11-5/8
DriveVariable Speed
Electrics1/2HP, 115/230V/ 1Ph Prewired 115V
End User SellableNo
Gross Weight (Lbs)924.0000
Gross Weight (Lbs) (Unit)Pound
Head Movement (Deg.)45
Item Display Order4.0000
Motor (HP)1-1/2 HP, 115/230V, 1Ph
Net Weight (Lbs.)792.0000
Net Weight (Lbs.) (Unit)Pound
Overall Dimensions (L x W x H) (In.)62-1/2 x 23 x 48
Prewired Voltage (V.)115
Prop 65Cancer
Rectangle at 45 Degrees (In.)8 x 8 or 2 x 9-1/2
Rectangle at 90 Degrees (In.)13 x 5-1/4 / 13-1/4 x 2
Round at 45 Degrees (In.)8
Round at 90 Degrees (In.)8
Shipping Weight (Lbs.)792.0000
Shipping Weight (Lbs.) (Unit)Pound
Square at 45 Degrees (In.)8 x 8
Vise Swivels (Deg.)45
Weight (Lbs.)924.0000
Weight (Lbs.) (Unit)Pound

Part #: 891020

Price: $7,939.00
