Constructed using the Certified Meehanite casting process, the JTM-1050EVS2/230, 10" x 50" Electronic Variable Speed Milling Machine provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. JET Mills have features you've come to expect and are backed by the industry-leading JET Two Year Warranty with products CSA/CUS Certified.

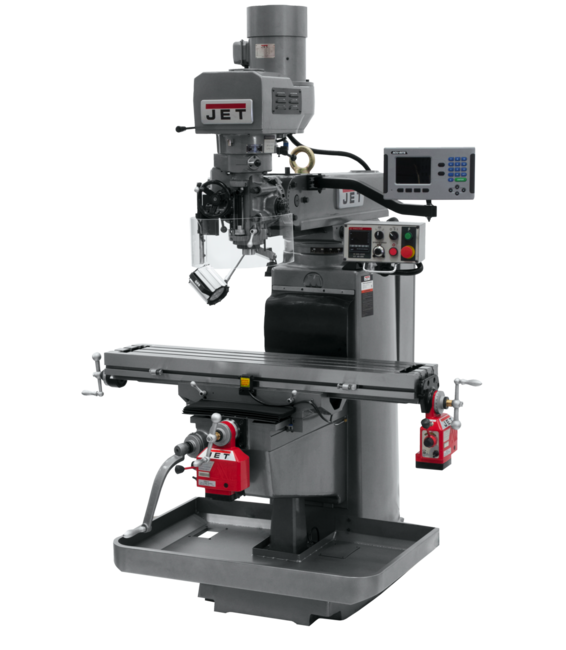

JTM-1050EVS2/230 Mill With Acu-Rite 203 DRO With X and Y-Axis Powerfeeds

Features & Benefits

  • Automatic oiler releases 3 to 6 cc/cy of lubrication at adjustable time intervals
  • Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
  • Dual locks on all moveable surfaces
  • Spindle head is internally cooled extending bearing, belt and motor life
  • Swing away control box houses an e-stop and puts all controls at the operators fingertips
  • Swing away safety shield
  • Table and ways are hardened up to 54 HRC and precision ground for greater accuracy
  • The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
  • The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
  • The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements
SAP EAN Number Code (UPC)731325452211
Model NumberJTM-1050EVS2/230
SAP Base Unit of MeasureEA
SAP Commodity Code8459.69.0090
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length66
SAP Unit of DimensionIN
SAP Height87
SAP Unit of DimensionIN
SAP Width63
SAP Unit of DimensionIN
SAP Gross Weight2580
SAP Weight UnitLBS
SAP Net weight2580
SAP Weight UnitLBS
SAP Transportation GroupLTL-Dock Del Only
Accessories Products660125
BOM Products350195,690601,M203-1635J
30 Point inspectionJET 30 Point
Collet Capacity1/8 - 7/8
Column Width (In.)20
Distance Spindle to Column (Max.) (In.)26-3/4
End User SellableNo
Inverter TypeDelta, B
Item Display Order21.0000
Max Distance Spindle to Table (In.)20-3/4
Motor (HP)3 HP, 230V, 3Ph
Number of Axis2
Overall Dimensions (L x W x H) (In.)66 x 63 x 87
Package NameAcu-Rite 203 DRO, X & Y Powerfeeds
PowerfeedX and Y-Axis
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)3-3/8
Quill Down Feed Rates (IPR).0015 - .003 - .006
Range of Spindle Speeds (RPM)60 - 4,500
Saddle Width (In.)11-1/2
Spindle Taper (In. x TPI) (English United States, Ecommerce)R-8
Spindle Travel (In.)5
Style (Type)EVS
Table Cross Travel (In.)14-3/4
Table Longitudinal Travel (In.)35-1/3
Table Longitudinal Travel With Powerfeed (In.)29-7/8
Table Size (L x W) (In.)10 x 50
Travel of Knee (In.)16-1/8
Travel of Ram (In.)15-7/8
T-Slot Centers (In.)2-1/2
Weight (Lbs.)2860.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)840

Part #: 690621

Price: $23,299.00
