JTM-1050VS2 203,XTPFA,DRW BAR & RSR BLK
JTM-1050VS2 203,XTPFA,DRW BAR & RSR BLKJTM-1050VS2 203,XTPFA,DRW BAR & RSR BLKJTM-1050VS2 203,XTPFA,DRW BAR & RSR BLK
JTM-1050VS2 203,XTPFA,DRW BAR & RSR BLKJTM-1050VS2 203,XTPFA,DRW BAR & RSR BLKJTM-1050VS2 203,XTPFA,DRW BAR & RSR BLK
JTM-1050VS2 203,XTPFA,DRW BAR & RSR BLK

Featuring Meehanite castings, a heavy-duty hardened and ground 10 x 50 table, and high precision class 7 precision bearings support the spindle, this Variable Speed Milling Machine provides consistent and reliable operation. An internal coolant tank is built into base for use with a coolant system (coolant pump not included). The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. JET Mills have features you've come to expect and are backed by the industry-leading JET Two Year Warranty.

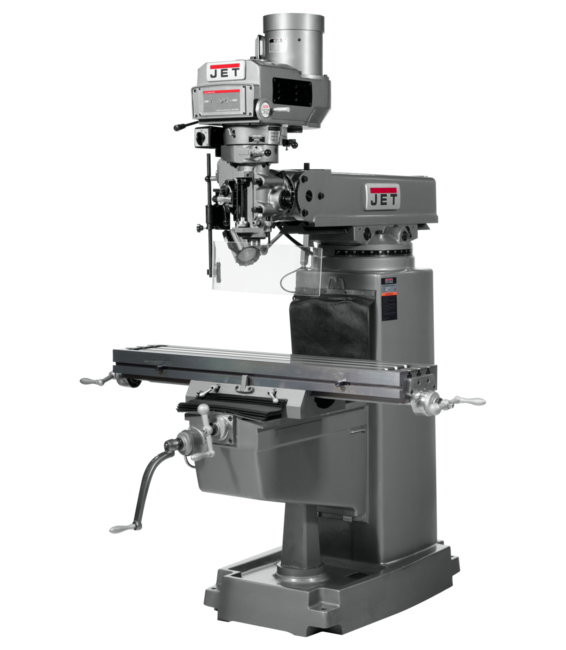

JTM-1050VS2 Mill With ACU-RITE 203 DRO With X-Axis Powerfeed, Power Draw Bar and 8" Riser Block

Features & Benefits

  • Adjustable gibs throughout
  • Chrome lead screws on X and Y axis
  • Chrome-plated motor shaft with bearing support at end
  • Hardened and ground square vertical knee ways and cross ways
  • Heavy duty motor drive
  • Locks on all moveable surfaces
  • One shot lubrication system
  • Spindle head is internally cooled
  • Three stage power downfeed with automatic stop
  • Tolerance test sheet included
SAP EAN Number Code (UPC)662755990915
Model NumberJTM-1050VS2
SAP Base Unit of MeasureEA
SAP Commodity Code8465.95.0055
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length68.75
SAP Unit of DimensionIN
SAP Height87
SAP Unit of DimensionIN
SAP Width95.75
SAP Unit of DimensionIN
SAP Gross Weight3150
SAP Weight UnitLBS
SAP Net weight3075
SAP Weight UnitLBS
SAP Transportation GroupLTL-Dock Del Only
BOM Products350096,350193K,350194,690050,M203-1635J
30 Point inspectionJET 30 Point
Collet Capacity1/8 - 7/8
Distance Spindle to Column (Max.) (In.)26
End User SellableNo
Item Display Order10.0000
Max Distance Spindle to Table (In.)19
Motor (HP)3 HP, 230/460V, 3Ph
Number of Axis2
Overall Dimensions (L x W x H) (In.)96 x 78 x 88
Package NameAcu-Rite 203 2-Axis DRO & X-Axis Powerfeed, Air Draw Bar & Riser Block
PowerfeedX-Axis
Power Draw BarPneumatic
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)3-3/8
Quill Down Feed Rates (IPR).0015 - .003 - .006
Range of Spindle Speeds (RPM)70 - 3,800
Spindle Taper (In. x TPI) (English United States, Ecommerce)R-8
Spindle Travel (In.)5
Style (Type)Variable Speed R8
Table Cross Travel (In.)15-1/4
Table Longitudinal Travel (In.)35
Table Longitudinal Travel With Powerfeed (In.)29-3/4
Table Size (L x W) (In.)10 x 50
Travel of Knee (In.)14-1/4
Travel of Ram (In.)20-1/2
T-Slot Centers (In.)2-1/2
Weight (Lbs.)2900.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)720

Part #: 690235

Price: $22,999.00
