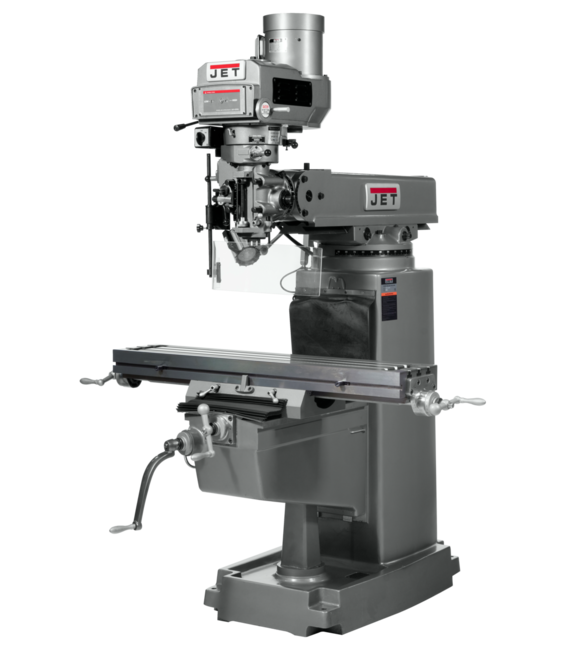

JTM-1050VS2 MIL W/DP700 DRO & X-Y PWRFD
JTM-1050VS2 MIL W/DP700 DRO & X-Y PWRFDJTM-1050VS2 MIL W/DP700 DRO & X-Y PWRFDJTM-1050VS2 MIL W/DP700 DRO & X-Y PWRFD
JTM-1050VS2 MIL W/DP700 DRO & X-Y PWRFDJTM-1050VS2 MIL W/DP700 DRO & X-Y PWRFDJTM-1050VS2 MIL W/DP700 DRO & X-Y PWRFD
JTM-1050VS2 MIL W/DP700 DRO & X-Y PWRFD

The JET JTM-1050VS2 features Certified Meehanite castings, a heavy-duty hardened and ground 10 x 50 table, and high precision class 7 precision bearings support the spindle. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. The spindle head is internally cooled to keep maintenance and repair needs down. JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty.

JTM-1050VS2 Mill With Newall DP700 DRO With X and Y-Axis Powerfeeds

Features & Benefits

  • Adjustable gibs throughout
  • Chrome lead screws on X and Y axis
  • Chrome-plated motor shaft with bearing support at end
  • Hardened and ground square vertical knee
  • Heavy duty motor drive
  • Internal coolant tank built into base for use with coolant system (Coolant pump not included)
  • Large Diameter quill is chromed
  • One shot lubrication system
  • Precision bored and honed milling head
  • Tolerance test sheet included
SAP EAN Number Code (UPC)662755513619
Model NumberJTM-1050VS2
SAP Base Unit of MeasureEA
SAP Commodity Code8465.95.0055
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length63.75
SAP Unit of DimensionIN
SAP Height87
SAP Unit of DimensionIN
SAP Width95.75
SAP Unit of DimensionIN
SAP Gross Weight2900
SAP Weight UnitLBS
SAP Net weight2900
SAP Weight UnitLBS
SAP Transportation GroupLTL-Dock Del Only
BOM Products350194,350195,690050,J1636DP700M
30 Point inspectionJET 30 Point
Collet Capacity1/8 - 7/8
Distance Spindle to Column (Max.) (In.)26
End User SellableNo
Item Display Order24.0000
Max Distance Spindle to Table (In.)19
Motor (HP)3 HP, 230/460V, 3Ph
Number of Axis2
Overall Dimensions (L x W x H) (In.)96 x 78 x 88
Package NameNewall DP700 2-Axis DRO & X & Y-Axis Powerfeeds
PowerfeedX and Y-Axis
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)3-3/8
Quill Down Feed Rates (IPR).0015 - .003 - .006
Range of Spindle Speeds (RPM)70 - 3,800
Spindle Taper (In. x TPI) (English United States, Ecommerce)R-8
Spindle Travel (In.)5
Style (Type)Variable Speed R8
Table Cross Travel (In.)15-1/4
Table Longitudinal Travel (In.)35
Table Longitudinal Travel With Powerfeed (In.)29-3/4
Table Size (L x W) (In.)10 x 50
Travel of Knee (In.)14-1/4
Travel of Ram (In.)20-1/2
T-Slot Centers (In.)2-1/2
Weight (Lbs.)2900.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)720

Part #: 691206

Price: $21,459.00
