JTM-4VS 9X49 W/DP700 3-AXQ DRO-X&YPWFD

Constructed using the Certified Meehanite casting process, JET Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. Available in single or three phase power configurations, the JET JTM-4VS Series mills are backed by the industry leading two year full service and parts warranty.

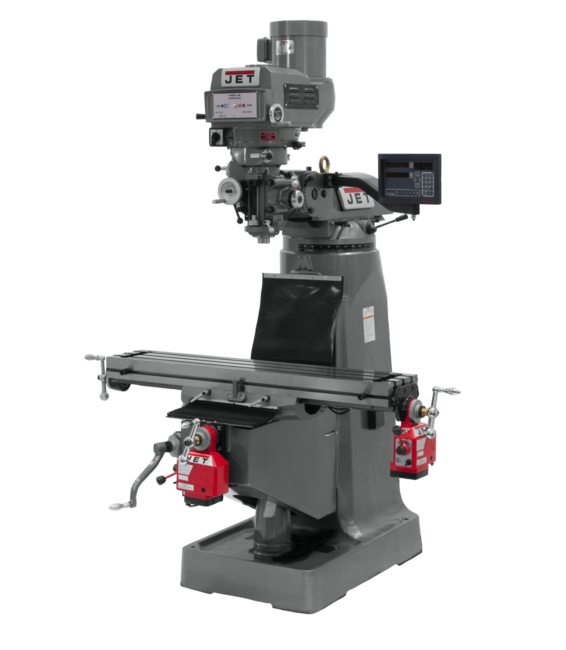

JTM-4VS Mill With 3-Axis Newall DP700 DRO (Quill) With X and Y-Axis Powerfeeds

Features & Benefits

  • Adjustable gibs throughout
  • Heavy duty splined motor drive
  • Internal coolant tank built into casting base for use with coolant system (Coolant pump not included)
  • Large Diameter quill is chromed
  • One shot lubrication system
  • Precision hardened and ground ways and table
  • Spindle head is internally cooled
  • Tolerance test sheet included
SAP EAN Number Code (UPC)662755513558
Model NumberJTM-4VS
SAP Base Unit of MeasureEA
SAP Commodity Code8465.95.0055
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length63
SAP Unit of DimensionIN
SAP Height85
SAP Unit of DimensionIN
SAP Width65.5
SAP Unit of DimensionIN
SAP Gross Weight2420
SAP Weight UnitLBS
SAP Net weight2420
SAP Weight UnitLBS
SAP Transportation GroupLTL-Dock Del Only
BOM Products350194,350195,690182,J12366Q-DP700M
30 Point inspectionJET 30 Point
Collet Capacity1/8 - 7/8
Distance Spindle to Column (Max.) (In.)19
End User SellableNo
Item Display Order40.0000
Max Distance Spindle to Table (In.)17-1/2
Motor (HP)3 HP, 230/460V, 3Ph
Number of Axis3 (Quill)
Overall Dimensions (L x W x H) (In.)66 x 63 x 85
Package NameNewall DP700 3-Axis DRO & X & Y-Axis Powerfeeds (Quill)
PowerfeedX and Y-Axis
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)3-3/8
Quill Down Feed Rates (IPR).0015 - .003 - .006
Range of Spindle Speeds (RPM)60 - 4,200
Spindle Taper (In. x TPI) (English United States, Ecommerce)R-8
Spindle Travel (In.)5
Style (Type)Variable Speed R8
Table Cross Travel (In.)12
Table Longitudinal Travel (In.)34
Table Longitudinal Travel With Powerfeed (In.)28-3/4
Table Size (L x W) (In.)9 x 49
Travel of Knee (In.)14-1/2
Travel of Ram (In.)13-3/8
T-Slot Centers (In.)2-1/2
Weight (Lbs.)2420.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)660

Part #: 691203

Price: $18,499.00
