JTM-4VS W/3X 203  (K) X,Y,Z TPF DR BR

Constructed using the Certified Meehanite casting process, JET Variable Speed Milling Machines provide consistent and reliable operation. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. Available in single or three phase power configurations, the JET JTM-4VS Series mills are backed by the industry leading Two Year full service and parts Warranty.

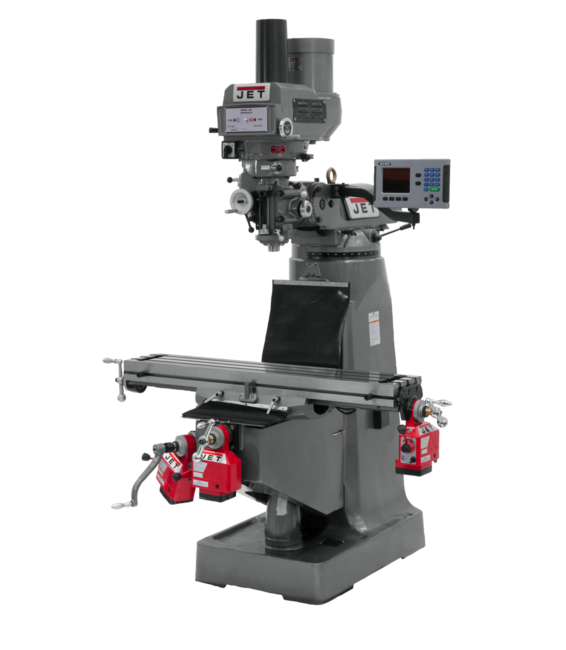

JTM-4VS Mill With 3-Axis ACU-RITE 203 DRO (Knee) With X, Y and Z-Axis Powerfeeds and Power Draw Bar

Features & Benefits

  • Adjustable gibs throughout
  • Heavy-duty spindle brake
  • Heavy-duty splined motor drive
  • Internal coolant tank built into casting base for use with coolant system (Coolant pump not included)
  • Large Diameter quill is chromed
  • One shot lubrication system
  • Precision hardened and ground ways and table
  • Spindle head is internally cooled
  • Tolerance test sheet included
SAP EAN Number Code (UPC)731325332902
Model NumberJTM-4VS
SAP Base Unit of MeasureEA
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Gross Weight2420
SAP Weight UnitLBS
SAP Net weight2420
SAP Weight UnitLBS
SAP Transportation GroupLTL
BOM Products350194,350195,350196,690182,A630,M203-133616J
30 Point inspectionJET 30 Point
Collet Capacity1/8 - 7/8
Distance Spindle to Column (Max.) (In.)19
End User SellableNo
Item Display Order33.0000
Max Distance Spindle to Table (In.)17-1/2
Motor (HP)3 HP, 230/460V, 3Ph
Number of Axis3 (Knee)
Overall Dimensions (L x W x H) (In.)66 x 63 x 85
Package NameACU-RITE 203 3-Axis DRO (Knee) & X & Y & Z-Axis Powerfeeds & Air Draw Bar
PowerfeedX, Y and Z-Axis
Power Draw BarPneumatic
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)3-3/8
Quill Down Feed Rates (IPR).0015 - .003 - .006
Range of Spindle Speeds (RPM)60 - 4,200
Spindle Taper (In. x TPI) (English United States, Ecommerce)R-8
Spindle Travel (In.)5
Style (Type)Variable Speed R8
Table Cross Travel (In.)12
Table Longitudinal Travel (In.)34
Table Longitudinal Travel With Powerfeed (In.)28-3/4
Table Size (L x W) (In.)9 x 49
Travel of Knee (In.)14-1/2
Travel of Ram (In.)13-3/8
T-Slot Centers (In.)2-1/2
Weight (Lbs.)2420.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)660

Part #: 690430

Price: $21,879.00
