JTM-949EVS/230 2X MILL PWR CNC

JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite casted JET Vertical Mills with CNC packages deliver accurate results every time, while also providing an easier solution to leveling the machine. The inverter drive system and emergency stop located on a swing away control arm that moves all major functions within the operators reach. Our automatic lubrication cycles every 30 minutes with a flow of 3-6cc to reduce maintenance. All the features you've come to expect backed by the industry-leading JET Two Year Warranty.

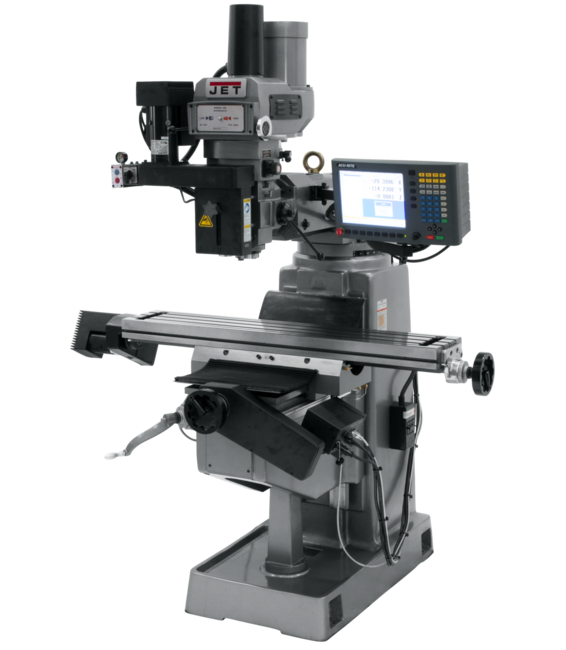

JTM-949EVS/230 Mill With 2-Axis ACU-RITE G-2 MILLPWR CNC

Features & Benefits

  • Adjustable gibs throughout
  • Class 7 bearings support the spindle for maximum rigidity in heavy cutting applications
  • Dual locks on all moveable surfaces
  • Heavy-duty spindle brake
  • Internal coolant tank built into casting base
  • Precision bored and honed milling head
  • Precision hardened and ground ways and table
  • Quick spindle feed nut easily adjusts to different depths
  • Three-stage power downfeed with automatic stop
  • Two 115V outlets on electrical box for DRO or powerfeeds
SAP EAN Number Code (UPC)731325452556
Model NumberJTM-949EVS/230
SAP Base Unit of MeasureEA
SAP Commodity Code8459.69.0090
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length66
SAP Unit of DimensionIN
SAP Height86
SAP Unit of DimensionIN
SAP Width63
SAP Unit of DimensionIN
SAP Gross Weight3000
SAP Weight UnitLBS
SAP Net weight3000
SAP Weight UnitLBS
SAP Transportation GroupLTL
30 Point inspectionJET 30 Point
CNC PackageACU-RITE MILLPWR® G2
Collet Capacity1/8 - 7/8
Column Width (In.)18
Distance Spindle to Column (Max.) (In.)18-1/8
End User SellableNo
Inverter TypeDelta, B
Item Display Order14.0000
Max Distance Spindle to Table (In.)20-3/4
Motor (HP)3HP, 230V, 3Ph
Number of Axis2
Overall Dimensions (L x W x H) (In.)67 x 64 x 86
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)3-3/8
Quill Down Feed Rates (IPR).0015 - .003 - .006
Range of Spindle Speeds (RPM)60 - 4,500
Saddle Width (In.)11-1/2
Spindle Taper (In. x TPI) (English United States, Ecommerce)R-8
Spindle Travel (In.)5
Style (Type)CNC
Table Cross Travel (In.)12-5/8
Table Longitudinal Travel (In.)36
Table Longitudinal Travel With Powerfeed (In.)30-3/4
Table Size (L x W) (In.)9 x 49
Travel of Knee (In.)15-3/4
Travel of Ram (In.)15-1/4
T-Slot Centers (In.)2-1/2
Weight (Lbs.)2420.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)720

Part #: 690575

Price: $41,649.00
