CS-275 MANUAL COLDSAW 275mm
CS-275 MANUAL COLDSAW 275mmCS-275 MANUAL COLDSAW 275mmCS-275 MANUAL COLDSAW 275mm
CS-275 MANUAL COLDSAW 275mmCS-275 MANUAL COLDSAW 275mmCS-275 MANUAL COLDSAW 275mm

JET Coldsaws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that youve come to expect from JET. All backed by the industry leading full service Two Year Warranty

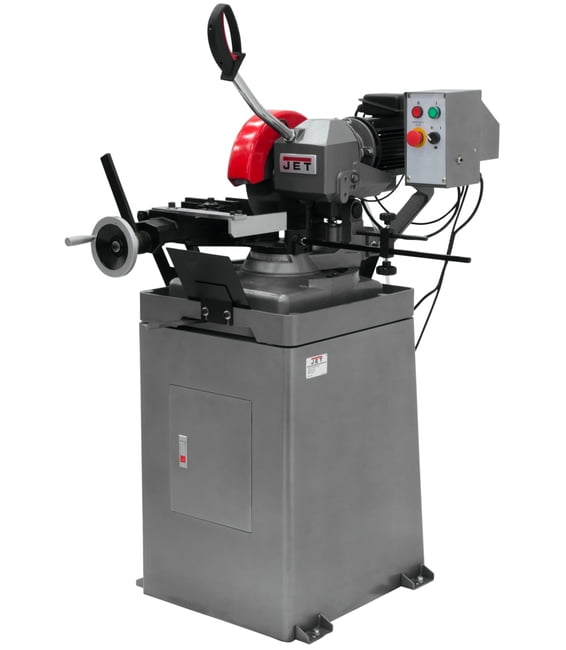

CS-275, 275mm Ferrous Manual Cold Saw

Features & Benefits

  • Blade drive reduction gearbox operates in an oil bath for increased durability
  • Cast iron frame
  • Flood coolant system
  • Flood coolant system with a 1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life
  • Fully adjustable material depth stop for sawing repeatability and increased production
  • Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade
  • Heavy-duty cast iron frame base with easy access storage provides a stable cutting platform
  • Quick clamping cam-action vise with adjustable gib and material support bar for burr-free cutting operations
  • Quick tension and release mitering capabilities with stops at 45 right, 45 left
  • Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards
SAP EAN Number Code (UPC)662756127846
Model NumberCS-275
SAP Base Unit of MeasureEA
SAP Commodity Code8461.50.8020
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length27
SAP Unit of DimensionIN
SAP Height61
SAP Unit of DimensionIN
SAP Width25
SAP Unit of DimensionIN
SAP Gross Weight400
SAP Weight UnitLBS
SAP Net weight350
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products414125,414126,414127,579067,CS275-41
30 Point inspectionNo value
End User SellableNo
Item Display Order5.0000
Maximum Vise Opening (In.)4
Motor (HP)1-1/2HP, 230V, 3Ph 2/4P 6.1/7.2 Amps
Prop 65Cancer and Reproductive Harm
Solid Rectangle at 45 Degrees (In.)2-3/16 x 2
Solid Rectangle at 90 Degrees (In.)3-3/32 x 2
Solid Round at 45 Degrees (In.)3-19/64
Solid Round at 90 Degrees (In.)3-19/64
Solid Square at 45 Degrees (In.)2-3/16 x 2-3/16
Solid Square at 90 Degrees (In.)2-1/2 x 2-1/2
Style (Type)Ferrous
Tubing Rectangle at 45 Degrees (In.)2-3/16 x 2
Tubing Rectangle at 90 Degrees (In.)3-3/32 x 2
Tubing Round at 45 Degrees (In.)3-19/64
Tubing Round at 90 Degrees (In.)3-19/64
Weight (Lbs.)360.0000
Weight (Lbs.) (Unit)Pound

Part #: 414226

Price: $3,059.00
