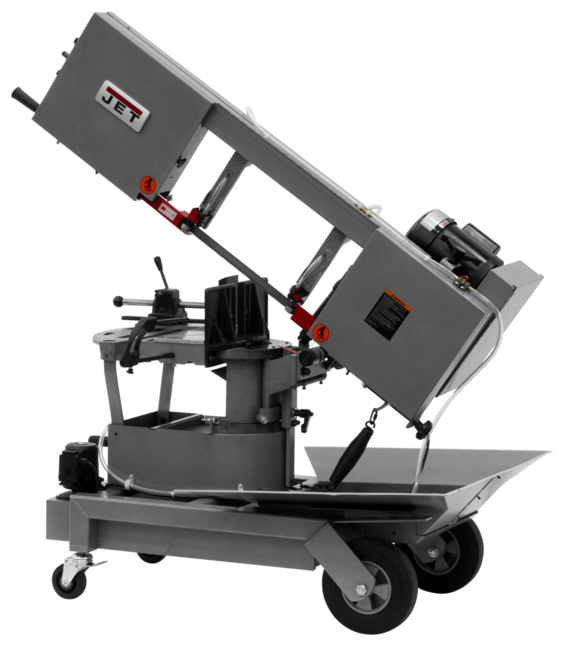

The JET Dual-Mitering Band Saw offers versatility and ease. The unique head design miters both left and right, allowing for quick angle cuts. Add to the convenience with easy conversion from a horizontal to vertical position, and wheels for moving around the shop floor.

HVBS-10-DMWC 10 Horizontal/Vertical Dual Mitering Portable Band Saw with Coolant System, 1HP, 115V, 1 Ph

Features & Benefits

  • Adjustable vise
  • Automatic shut off switch stops the sawing process
  • Blade is fully guarded for Operator safety
  • Built-in, self-propelled blade brush prevents chip build up in blade guides
  • Head is pressure controlled by a hydraulic cylinder
  • Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with variable types of materials
  • Large 16" x 10" Vertical cutting table
  • Power switch with safety key prevents accidental start up
  • Protractor for fast and accurate angle cutting
  • Removable chip tray
SAP EAN Number Code (UPC) 731325513516
Model Number HVBS-10-DMWC
SAP Base Unit of Measure EA
SAP Commodity Code 8462.29.0020
SAP Country of Origin Taiwan
Warranty 2 Year
SAP Delivery Plant JNA
SAP Length 72
SAP Unit of Dimension IN
SAP Height 46
SAP Unit of Dimension IN
SAP Width 34.5
SAP Unit of Dimension IN
SAP Gross Weight 558
SAP Weight Unit LBS
SAP Net weight 528
SAP Weight Unit LBS
SAP Transportation Group LTL-Dock Del Only
End User Sellable No
Head Movement (Deg.) +/- 45
Item Display Order 17.0000
Maximum Vise Opening (In.) 10
Motor (HP) 1HP, 115V, Single Phase
Overall Dimensions (L x W x H) (In.) 72 x 34.5 x 46
Prop 65 Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.) 8 x 5-1/2
Rectangle at 90 Degrees (In.) 8 x 9
Round at 45 Degrees (In.) 6-1/2
Round at 90 Degrees (In.) 10
Table Height (In.) 30 13/32
Vertical Cutting Capacity 13 x 10
Weight (Lbs.) 558.0000
Weight (Lbs.) (Unit) Pound

Part #: 424465

Price: $6,892.99
