HVBS-712, 7 X 12 BANDSAW
HVBS-712, 7 X 12 BANDSAWHVBS-712, 7 X 12 BANDSAWHVBS-712, 7 X 12 BANDSAW
HVBS-712, 7 X 12 BANDSAWHVBS-712, 7 X 12 BANDSAWHVBS-712, 7 X 12 BANDSAW

The JET HVBS-712 Horizontal/Vertical Metalworking Bandsaw has everything any operator needs to tackle even the toughest job. JET increased the width and height of the stand and added new features that exceed expectations. The HVBS-712 is another innovative JET product packed with features youve come to expect.

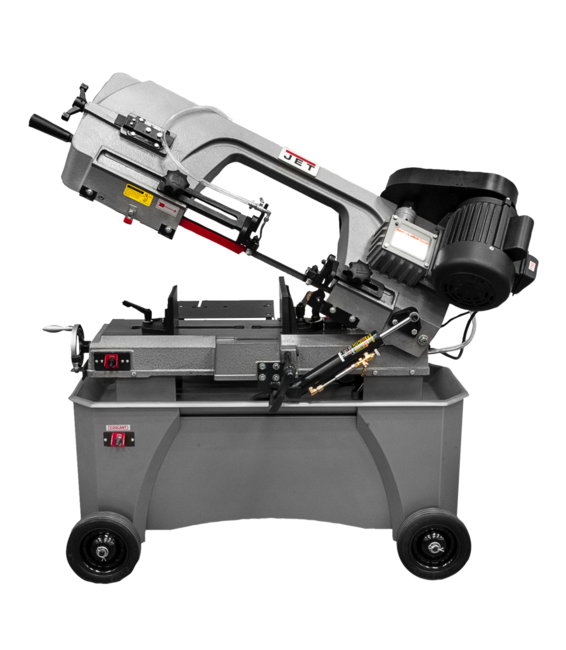

HVBS-712, 7" x 12" Horizontal / Vertical Bandsaw

Features & Benefits

  • 9" x 12" worktable in the vertical position
  • Adjustable Material Stop
  • Adjustable material stop for repeatability
  • Blade drive is a belt to sealed, hardened, and ground gear drive system
  • Blade wheels are made from flanged cast iron
  • Blade wheels are made from flanged cast iron for increased durability
  • Cast mounted adjustable hydraulic downfeed
  • CSA/CUS Certified
  • Four 8" Rubber Wheels for Ease of Movement
  • Improved Height and width of stand with built-in storage cabinet and chip tray
SAP EAN Number Code (UPC)731325452518
Model NumberHVBS-712
SAP Base Unit of MeasureEA
SAP Commodity Code8461.50.8020
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length48
SAP Unit of DimensionIN
SAP Height44
SAP Unit of DimensionIN
SAP Width17
SAP Unit of DimensionIN
SAP Gross Weight418
SAP Weight UnitLBS
SAP Net weight374
SAP Weight UnitLBS
SAP Transportation GroupLTL
Blade Speeds (SFPM)86, 132, 178, 260
Blade Wheel Diameter (In.)11-3/4
Coolant Capacity (Gal.)1
DriveStep Pulley
End User SellableNo
Item Display Order17.0000
Motor (HP)3/4 HP, 115/230V, 1Ph
Overall Dimensions (L x W x H) (In.)48 x 17 x 40
Prop 65Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)6-1/2 x 4-1/2
Rectangle at 90 Degrees (In.)4 x 11 / 7 x 10-3/8
Round at 45 Degrees (In.)4-1/2
Round at 90 Degrees (In.)7
Square at 45 Degrees (In.)4-1/2 x 4-1/2
Square at 90 Degrees (In.)7 x 7
Vise Swivels (Deg.)45
Weight (Lbs.)418.0000
Weight (Lbs.) (Unit)Pound

Part #: 414559

Price: $1,949.00
