MBS-1014W-3 SWIVEL HEAD BANDSAW

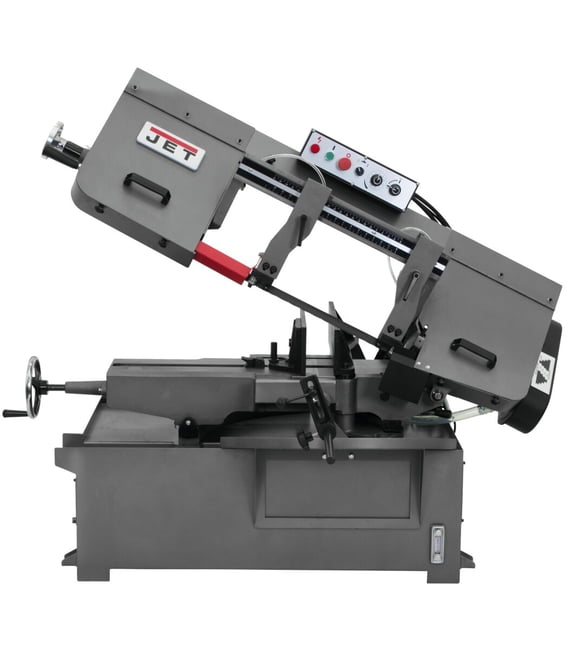

MBS-1014W-3, 10" x 14" Horizontal Mitering Bandsaw

JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.

Features & Benefits

  • Large , easy-to-read scale for accurate positioning of the saw head
  • Fully adjustable hydraulic downfeed with separate on/off control valve
  • Large hand wheel and built-in gauge provides easy blade tensioning
  • Carbide blade guides with roller bearings
  • Coolant is distributed through the blade guides
  • Quick positioning vise reduces set-up time
  • Built-in, self propelled blade brush extends blade life
  • Automatic shut-off after cut
  • Coolant system
UPC662755784781
SAP Material GroupMW42
SAP Material TypeZFIN
SAP Warranty2 Year
Model NumberMBS-1014W-3
SAP OwnerJMW
SAP Country of OriginTW
SAP Product CategoryMW
SAP Rounding ProfileNA
SAP Height44.000
SAP Length31.000
SAP Volume55.140
SAP Width74.000
Prop 65Cancer and Reproductive Harm
Bed Height (In.)25
Blade Length (In.)130
Blade Size (In.)1 x .035 x 130
Blade Speed (SFPM)82, 132, 210, 330
Blade Wheel Diameter (In.)14
Cutting Capacity (W x D) (In.)10 x 14
DriveBelt Drive
Head Movement (Deg.)
Motor (HP)3 HP, 230/460V, 3Ph
Rectangle at 45 Degrees (In.)9 x 8-1/2
Rectangle at 90 Degrees (In.)10 x 14
Round at 45 Degrees (In.)9
Round at 90 Degrees (In.)10
Vise Swivels (Deg.)
Weight (Lbs.)946
Overall Dimensions (L x W x H) (In.)26 x 69 x 44
Throat Depth (In.)10-1/2
Prewired (V.)230V, **SURCHARGE APPLIES FOR 460V RE-WIRE

Part #: 414477

Price: $6,599.00
