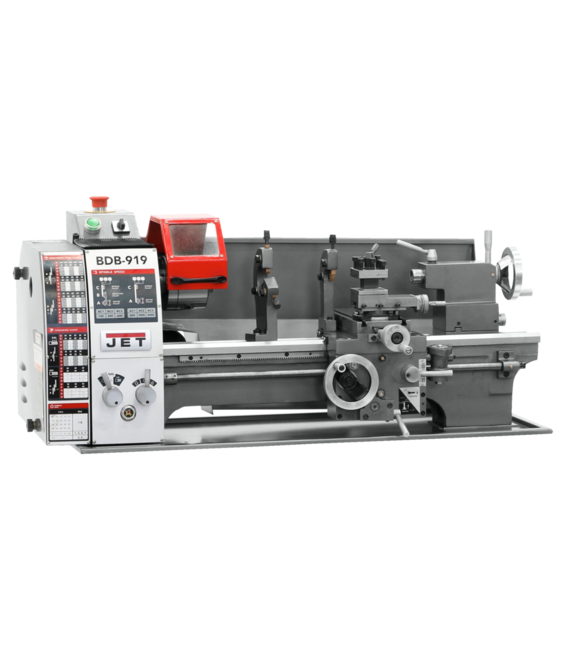

9x19 LATHE  BDB-919
9x19 LATHE  BDB-9199x19 LATHE  BDB-9199x19 LATHE  BDB-919
9x19 LATHE  BDB-9199x19 LATHE  BDB-9199x19 LATHE  BDB-919
9x19 LATHE  BDB-9199x19 LATHE  BDB-9199x19 LATHE  BDB-919
9x19 LATHE  BDB-9199x19 LATHE  BDB-9199x19 LATHE  BDB-919
9x19 LATHE  BDB-919

The BDB-919 benchtop lathe is perfect for the most versatile shops. Engineered with precision induction hardened ground bed-ways and precision tapered roller bearings, the BDB-919 delivers the smooth operation and rigidity needed to craft professional pieces.

BDB-919 Belt Drive Bench lathe

Features & Benefits

  • Backlash adjustments provided throughout the carriage
  • Emergency stop within easy reach of the Operator
  • Full Length Splash Guard
  • Power longitudinal feed allows threading and reverse threading
  • Quick change gearbox provides wide range of inch and metric threads
  • Reversing switch for added versatility
  • Safety on/off switch
  • Some images show lathe with optional stand
  • Standard Accessories
SAP EAN Number Code (UPC)731325545647
Model NumberBDB-919
SAP Base Unit of MeasureEA
SAP Commodity Code8458.19.0020
SAP Country of OriginChina
Warranty2 Year
SAP Delivery PlantJNA
SAP Length40
SAP Unit of DimensionIN
SAP Height30
SAP Unit of DimensionIN
SAP Width20
SAP Unit of DimensionIN
SAP Gross Weight304
SAP Weight UnitLBS
SAP Net weight269
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products321375
Carriage Travel (In.)17.5
Compound Slide Travel (In.)1-7/8
End User SellableNo
Item Display Order202.0000
Max Tool Size (In.)1/2
Motor (HP)3/4 HP, 115V, 1PH
Number of Inch Threads27.0000
Number of Longitudinal and Cross Feed Rates60
Number of Metric Threads12.0000
Number of Spindle Speeds6
Overall Dimensions (L x W x H) (In.)41x22x20
Prop 65Cancer and Reproductive Harm
Range of Inch Threads (TPI)8 - 56
Range of Longitudinal Feeds (IPR)0.0006-0.0368
Range of Metric Threads0.5 - 3.5
Range of Spindle Speeds (RPM)130-2000
Configurator Option TypeBase Machine
Spindle Bore (In.)3/4
Spindle Mount (English United States, Ecommerce)1-1/2 x 8TPI
Spindle Taper with Sleeve (English United States, Ecommerce)MT-3
Steady Rest Capacity (In.)1-3/4
Swing Over Bed (In.)8-3/4
Swing Over Cross Slide (In.)5
Tailstock Spindle Travel (In.)1-9/16
Taper in Tailstock SpindleMT-2
Weight (Lbs.)250.0000
Weight (Lbs.) (Unit)Pound
Width of Bed (In.)4-1/2

Part #: 321378

Price: $3,469.00
