BDB1340A LATHE W/NWLL DP700 2-AX DRO(TEX

JET Belt Drive Bench Lathes feature an enclosed gearbox with helical cut gears for noise reduction and smooth operation. The full-length splash guard on all sizes prevents hot chips and fluid from contaminating the work area and the quick-change gearbox allows for fast and easy gear changes for metric threading. The optional bench shown in the image is compatible with JET Lathes and is available for purchase. Each JET Lathe comes loaded with features youve come to expect, all backed by the industry leading JET Two Year Warranty.

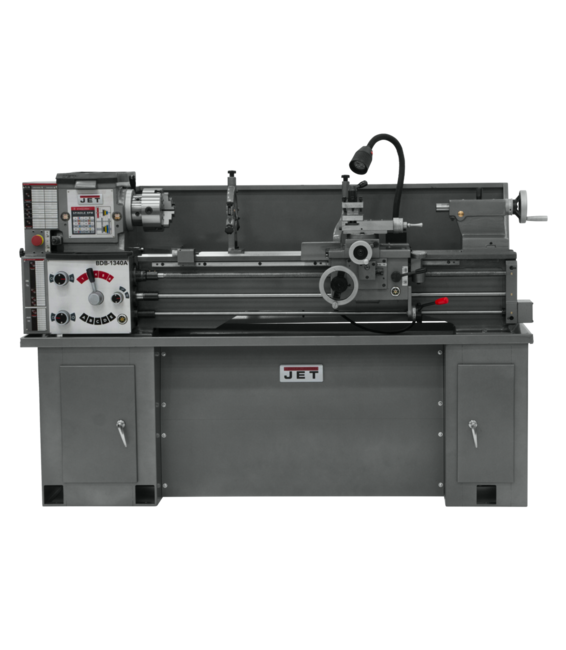

BDB-1340A With Newall DP700 DRO

Features & Benefits

  • 6" 3-jaw direct mount scroll chuck with top reversing jaws
  • Automatic feeding and threading are fully interlocked
  • Carriage mounted spindle control lever
  • Centers and headstock center sleeves
  • Feed selectors travel in grooved ways
  • Independent lead screw and feed rod
  • Low voltage motor controls
  • Spindle is supported by precision tapered roller bearings
  • Tailstock may be offset for turning taper
  • Tolerance test certificate included
SAP EAN Number Code (UPC)662755511851
Model NumberBDB-1340A
SAP Base Unit of MeasureEA
SAP Commodity Code8458.19.0020
SAP Country of OriginChina
Warranty2 Year
SAP Delivery PlantJNA
SAP Length71
SAP Unit of DimensionIN
SAP Height45
SAP Unit of DimensionIN
SAP Width32
SAP Unit of DimensionIN
SAP Gross Weight975
SAP Weight UnitLBS
SAP Net weight975
SAP Weight UnitLBS
SAP Transportation GroupLTL-Dock Del Only
Accessories Products321431,321442,321443AK,321515A,650014,650015,650016,650017,650018,650295,650300,650305,660200
BOM Products321360A,J640DP700L
Carriage Travel (In.)35
Compound Slide Travel (In.)2-11/16
DriveBelt
End User SellableNo
Item Display Order198.0000
Length of Gap (In.)8
Max Tool Size (In.)5/8 x 5/8
Motor (HP)2 HP, 230V, 1Ph
Number of Inch Threads38.0000
Number of Longitudinal and Cross Feed Rates38
Number of Metric Threads23.0000
Number of Spindle Speeds12
Overall Dimensions (L x W x H) (In.)71 x 32 x 45
Package NameNewall DP700 2-Axis DRO
Prop 65Cancer and Reproductive Harm
Range of Cross Feeds (IPR)0.0006-0.013
Range of Inch Threads (TPI)3-1/2 - 80
Range of Longitudinal Feeds (IPR)0.0018-0.0374
Range of Metric Threads0.45-10
Range of Spindle Speeds (RPM)60 - 1,240
Size (English United States, Ecommerce)13 x 40
Spindle Bore (In.)1-3/8
Spindle Mount (English United States, Ecommerce)D1-4
Spindle Taper with Sleeve (English United States, Ecommerce)MT-5 (MT-3)
Steady Rest Capacity (In.)2-5/8
Style (Type)Bench
Swing Over Bed (In.)13
Swing Over Cross Slide (In.)7-25/32
Swing Through Gap (In.)18-3/4
Tailstock Spindle Travel (In.)3-3/4
Taper in Tailstock SpindleMT-3
Weight (Lbs.)1175.0000
Weight (Lbs.) (Unit)Pound
Width of Bed (In.)7-3/8

Part #: 321130

Price: $11,899.00
