GH-1440-1 LATHE WITH TAPER ATTACHMENT

The new JET GH-1440-1 and GH-1440-3 Geared Head Engine Lathes weigh over one ton and come equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1440-1 and GH-1440-3 also includes an emergency stop within easy reach of the operator as well as a patented Electronic Chuck Key Docking Station that prevents startup without the chuck key when safely docked.

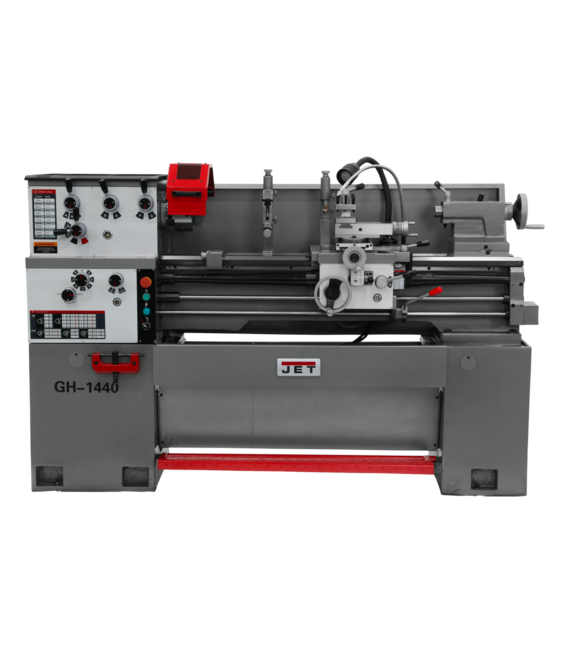

GH-1440-1 Lathe with Taper Attachment

Features & Benefits

• Compound and cross slide have backlash elimination
• Front Removable Chip Tray
• Full Length Splash Guard
• Inch-metric dials are standard
• Independent lead screw and feed rod
• Safety on/off switch
• Spindle actuation control is apron mounted
• Spindle jog button for easy gear engagement and spindle inching
• Splined, not keyed, shafts are utilized
• Tailstock may be offset for turning taper
