GH-1440-3 14x40 ENG 3HP,220V, 3PH

Name: GH-1440-3 14x40 ENG 3HP,220V, 3PH
Brand: Jet
SKU: 322840
Price: 14499.00 USD
Availability: InStock

Lathes

<< Back

The new JET GH-1440-1 and GH-1440-3 Geared Head Engine Lathes weigh over one ton and come equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1440-1 and GH-1440-3 also includes an emergency stop within easy reach of the operator as well as a patented Electronic Chuck Key Docking Station that prevents startup without the chuck key when safely docked.

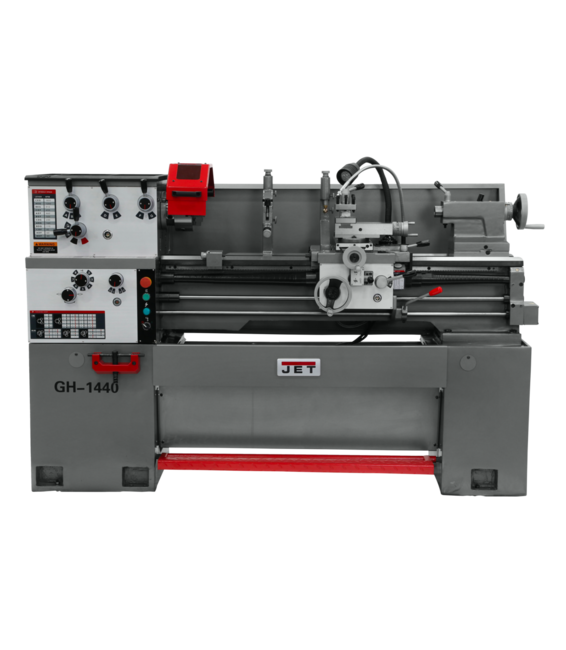

GH-1440-3 Geared Head Lathe

Features & Benefits

Compound and cross slide have backlash elimination
Front Removable Chip Tray
Full Length Splash Guard
Inch-metric dials are standard
Independent lead screw and feed rod
Safety on/off switch
Spindle actuation control is apron mounted
Spindle jog button for easy gear engagement and spindle inching
Splined, not keyed, shafts are utilized
Tailstock may be offset for turning taper

SAP EAN Number Code (UPC)	731325545678
Model Number	GH-1440-3
SAP Base Unit of Measure	EA
SAP Commodity Code	8458.19.0090
SAP Country of Origin	China
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Length	74.8
SAP Unit of Dimension	IN
SAP Height	56.5
SAP Unit of Dimension	IN
SAP Width	30
SAP Unit of Dimension	IN
SAP Gross Weight	2336
SAP Weight Unit	LBS
SAP Net weight	2116
SAP Weight Unit	LBS
SAP Transportation Group	LTL-Dock Del Only
Accessories Products	321431,321519,650014,650016,650295,650300,650305,660220
Carriage Travel (In.)	37-1/2
Compound Slide Travel (In.)	3-1/2
End User Sellable	No
Item Display Order	131.0000
Length of Gap (In.)	9-3/8
Max Tool Size (In.)	5/8 x 5/8
Motor (HP)	3HP, 230/460V, 3PH
Number of Inch Threads	40.0000
Number of Longitudinal and Cross Feed Rates	40
Number of Metric Threads	23.0000
Number of Spindle Speeds	12
Overall Dimensions (L x W x H) (In.)	74-4/5 x 28 x 46
Package Name	GH-1440-3 Geared Head Lathe
Prop 65	Cancer and Reproductive Harm
Range of Cross Feeds (IPR)	0.0004 - 0.0103
Range of Inch Threads (TPI)	4-112
Range of Longitudinal Feeds (IPR)	0.0012 - 0.0294
Range of Metric Threads	0.45-7.5
Range of Spindle Speeds (RPM)	40-1800
Configurator Option Type	Base Machine
Spindle Bore (In.)	1-1/2
Spindle Mount (English United States, Ecommerce)	D1-4
Spindle Taper with Sleeve (English United States, Ecommerce)	MT-5
Steady Rest Capacity (In.)	3-1/2
Swing Over Bed (In.)	14
Swing Over Cross Slide (In.)	8-1/5
Swing Through Gap (In.)	20
Tailstock Spindle Travel (In.)	4-3/4
Taper in Tailstock Spindle	MT-3
Weight (Lbs.)	2336.0000
Weight (Lbs.) (Unit)	Pound
Width of Bed (In.)	10-1/5

Part #: 322840

Price: $14,499.00

Quantity:
