GH-1440ZX LATHE W/COLLET CLOSER(TEXT)
GH-1440ZX LATHE W/COLLET CLOSER(TEXT)GH-1440ZX LATHE W/COLLET CLOSER(TEXT)GH-1440ZX LATHE W/COLLET CLOSER(TEXT)

The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency, and reliability to your metal shop. A one-piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the universal gearbox eliminates the need to change gears. This lathe also features a 10 three jaw scroll chuck with top reversing jaws, and an e-stop on the carriage for increased operator safety. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.

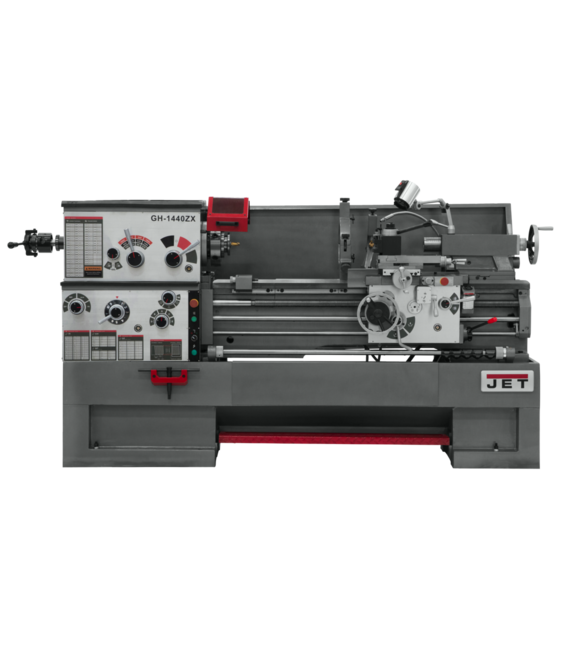

GH-1440ZX With Collet Closer

Features & Benefits

  • Articulating LED work lamp
  • Centrally located controls with jog button
  • Electronic Chuck Key Holder
  • Five position automatic carriage stop increases productivity
  • Full length splash guard and coolant return
  • Large capacity steady rest with ball bearing tips
  • Large easy to use foot brake
  • Mounting pads and levelers
  • Removable gap allows large diameter work
  • Tool box and adjusting tools
SAP EAN Number Code (UPC)662755515323
Model NumberGH-1440ZX
SAP Base Unit of MeasureEA
SAP Commodity Code8458.19.0020
SAP Country of OriginChina
Warranty2 Year
SAP Delivery PlantJNA
SAP Length97.5
SAP Unit of DimensionIN
SAP Height47
SAP Unit of DimensionIN
SAP Width40
SAP Unit of DimensionIN
SAP Gross Weight5700
SAP Weight UnitLBS
SAP Net weight5700
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products321291,321292,650014,650015,650016,650017,650018,650270,650295,650300,650305,660210
BOM Products321292,321910
Carriage Travel (In.)36-9/16
Compound Slide Travel (In.)5-1/8
Cross Slide Travel (In.)9.0000
Cross Slide Travel (In.) (Unit)Inch
DriveGeared Head
End User SellableNo
Item Display Order94.0000
Length of Gap (In.)12
Max Tool Size (In.)1 x 1
Motor (HP)7-1/2 HP, 230/460, 3 Ph
Number of Inch Threads61.0000
Number of Longitudinal and Cross Feed Rates46/31
Number of Metric Threads24.0000
Number of Spindle Speeds12
Overall Dimensions (L x W x H) (In.)96 x 44 x 66
Package NameCollet Closer
Prop 65Cancer and Reproductive Harm
Range of Cross Feeds (IPR).0006 - .0360
Range of Inch Threads (TPI)1-5/8 - 72
Range of Longitudinal Feeds (IPR).0015 - .0900
Range of Metric Threads.05 - 20
Range of Spindle Speeds (RPM)42 - 1,800
Size (English United States, Ecommerce)14 x 40
Spindle Bore (In.)3-1/8
Spindle Mount (English United States, Ecommerce)D1-8
Spindle Taper with Sleeve (English United States, Ecommerce)MT-7 (MT-5)
Steady Rest Capacity (In.)3/8 - 7
Style (Type)Engine - Large Spindle Bore
Swing Over Bed (In.)14
Swing Over Cross Slide (In.)7-5/8
Swing Through Gap (In.)23-5/8
Tailstock Spindle Travel (In.)6
Weight (Lbs.)5187.0000
Weight (Lbs.) (Unit)Pound
Width of Bed (In.)13-3/8

Part #: 321531

Price: $29,399.00
