GH-1440ZX W/303 DRO,TAK&COLLETCLS(TEXT)

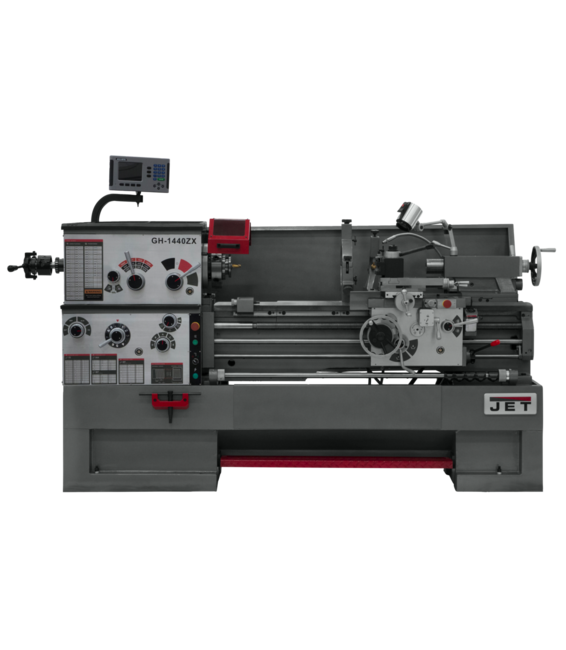

GH-1440ZX With ACU-RITE 303 DRO With Taper Attachment and Collet Closer

The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop. A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.

Features & Benefits

  • Chrome molybdenum headstock gears are hardened, ground and shaved
  • Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
  • Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
  • T-slotted compound slide featuring four-way tool post
  • One piece cast iron base absorbs vibration allowing heavier cuts
  • High quality ANSI Class 50 wear resistant cast iron bed ways are
  • Removable gap allows large diameter work
  • Five position automatic carriage stop increases productivity
  • Meehanite Castings
UPC731325172881
SAP Material GroupMW14
SAP Material TypeZFIN
SAP Warranty2 Year
Model NumberGH-1440ZX
SAP OwnerJMW
SAP Division1
SAP Country of OriginTW
SAP Product CategoryMW
SAP Rounding ProfileNA
SAP Height47.000
SAP Length97.500
SAP Volume106.076
SAP Width40.000
Prop 65Cancer and Reproductive Harm
Number of Longitudinal and Cross Feed Rates46/31
Number of Metric Threads24
Max Tool Size (In.)1 x 1
DriveSV_1375591258789
Overall Dimensions (L x W x H) (In.)96 x 44 x 66
Swing Through Gap (In.)23-5/8
Weight (Lbs.)5,187
Width of Bed (In.)13-3/8
Motor (HP)7-1/2 HP, 230/460, 3 Ph
Swing Over Bed (In.)14
Cross Slide Travel (In.)9
Taper in Tailstock SpindleMT-4
Compound Slide Travel (In.)5-1/8
Range of Metric Threads.05 - 20
Accessory 1Taper Attachment
Carriage Travel (In.)36-9/16
Steady Rest Capacity (In.)3/8 - 7
Number of Inch Threads61
Range of Spindle Speeds (RPM)42 - 1,800
Spindle MountD1-8
Follow Rest Capacity (In.)1/2 - 3-1/2
Spindle Bore (In.)3-1/8
Range of Inch Threads (TPI)1-5/8 - 72
Digital ReadoutACU-RITE 303
Size14 x 40
Spindle Taper with SleeveMT-7 (MT-5)
Swing Over Cross Slide (In.)7-5/8
Number of Spindle Speeds12
Tailstock Spindle Travel (In.)6
Style (Type)Engine - Large Spindle Bore
Accessory 2Collet Closer
Length of Gap (In.)12
Range of Cross Feeds (IPR).0006 - .0360
Distance Between Centers (In.)40
Range of Longitudinal Feeds (IPR).0015 - .0900
Prewired (V.)230V, **SURCHARGE APPLIES FOR 460V RE-WIRE

Part #: 321302

Price: $26,959.00
