GH-2680ZH GEARED HEAD ENGINE LATHE (TEXT
GH-2680ZH GEARED HEAD ENGINE LATHE (TEXTGH-2680ZH GEARED HEAD ENGINE LATHE (TEXTGH-2680ZH GEARED HEAD ENGINE LATHE (TEXT
GH-2680ZH GEARED HEAD ENGINE LATHE (TEXTGH-2680ZH GEARED HEAD ENGINE LATHE (TEXTGH-2680ZH GEARED HEAD ENGINE LATHE (TEXT

Constructed using the Certified Meehanite casting process for added durability, the JET ZH-Series 4-1/8 Spindle Bore Lathes provide consistent and reliable operation. Features include a clutch operated headstock with all headstock gears hardened and ground, a universal gearbox, fully integrated coolant system, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. These are the features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.

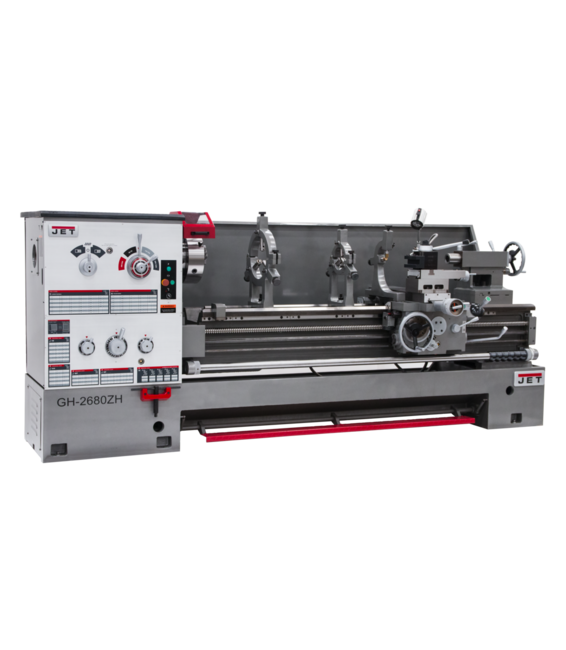

GH-2680ZH, 4-1/8" Spindle Bore Geared Head Lathe

Features & Benefits

  • 12" 3 Jaw scroll chuck with top reversing jaws
  • 2 Steady rests with roller bearings
  • Bed ways are induction hardened and ground for durability
  • E-Stop on Carriage for added safety
  • Electronic Chuck Key Holder
  • Fitted top mats to hold tooling
  • Full Length Splash Guard
  • Heavy-duty tailstock and quill
  • Large easy to use foot brake
  • Rapid power traverse to cross slide and carriage
SAP EAN Number Code (UPC)662756127969
Model NumberGH-2680ZH
SAP Base Unit of MeasureEA
SAP Commodity Code8458.19.0030
SAP Country of OriginChina
Warranty2 Year
SAP Delivery PlantJNA
SAP Length144
SAP Unit of DimensionIN
SAP Height77
SAP Unit of DimensionIN
SAP Width46
SAP Unit of DimensionIN
SAP Gross Weight9251
SAP Weight UnitLBS
SAP Net weight8590
SAP Weight UnitLBS
SAP Transportation GroupFlatbed
Accessories Products321293,650290,650295,650300,650305
30 Point inspectionJET 30 Point
Bed Gap (In.)8
Carriage Travel (In.)72-1/2
Compound Slide Travel (In.)5-1/2
Coolant Pump Motor1/8
Diametrial Pitch Threads Number24.0000
Distance Between Centers (In.)80
DriveGeared Head
End User SellableNo
Gross Weight (Lbs)9251.0000
Gross Weight (Lbs) (Unit)Pound
Input Power230/460V, 3Ph
Item Display Order8.0000
Length of Gap (In.)8
Max Tool Size (In.)1-1/4 x 1-1/4
Motor (HP)10 HP, 230/460, 3 Ph
Motor Phase3
Motor Power (HP)10
Motor Voltage (V.)230/460
Net Weight (Lbs.)8514.0000
Net Weight (Lbs.) (Unit)Pound
Number of Inch Threads48.0000
Number of Longitudinal and Cross Feed Rates65
Number of Metric Threads22.0000
Number of Spindle Speeds12
Overall Dimensions (L x W x H) (In.)138 x 43 x 57
Prewired Voltage (V.)230
Prop 65Cancer and Reproductive Harm
Range of Cross Feeds (IPR).010 - .0404
Range of Inch Threads (TPI)2-30
Range of Longitudinal Feeds (IPR).0023 - .0937
Range of Metric Threads1 - 14
Range of Spindle Speeds (RPM)36 - 1,600
Configurator Option TypeBase Machine
Shipping Dimensions (L x W x H) (In.)138 x 43 x 57
Size (English United States, Ecommerce)26 x 80
Spindle Bore (In.)4-1/8
Spindle Mount (English United States, Ecommerce)D1-8
Spindle Taper with Sleeve (English United States, Ecommerce)MT-5
Steady Rest Capacity (In.)Small 25/32 - 4-29/32, Large 3-15/16 - 9-7/16
Style (Type)Engine - Large Spindle Bore
Swing Over Bed (In.)26
Swing Over Cross Slide (In.)16-1/2
Swing Through Gap (In.)34
Tailstock Spindle Travel (In.)6
Taper in Tailstock SpindleMT-5
TypeLarge Spindle Bore Engine Lathe
Weight (Lbs.)8514.0000
Weight (Lbs.) (Unit)Pound
Width of Bed (In.)16
Wiring RemarksAdditional Fee required to rewire to 460V

Part #: 321860

Price: $45,859.00
