Constructed using the Certified Meehanite casting process for added durability, the JET ZH-Series 4-1/8 Spindle Bore Lathes provide consistent and reliable operation. Features include a clutch operated headstock with all headstock gears hardened and ground, a universal gearbox, fully integrated coolant system, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. These are the features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.

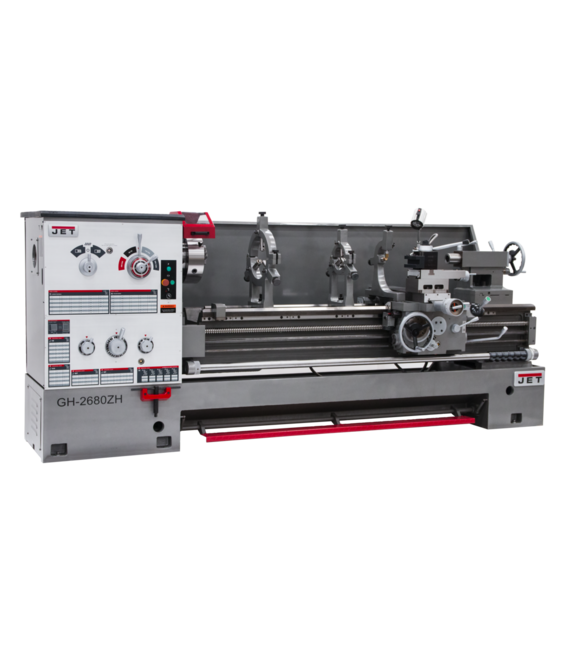

GH-2680ZH With Taper Attachment

Features & Benefits

12" 3 Jaw scroll chuck with top reversing jaws
2 Steady rests with roller bearings
Bed ways are induction hardened and ground for durability
E-Stop on Carriage for added safety
Electronic Chuck Key Holder
Fitted top mats to hold tooling
Full Length Splash Guard
Heavy-duty tailstock and quill
Large easy to use foot brake
Rapid power traverse to cross slide and carriage

SAP EAN Number Code (UPC)	731325249453
Model Number	GH-2680ZH
SAP Base Unit of Measure	EA
SAP Country of Origin	China
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Gross Weight	9251
SAP Weight Unit	LBS
SAP Net weight	8590
SAP Weight Unit	LBS
SAP Transportation Group	Flatbed
Accessories Products	321293,650290,650295,650300,650305
BOM Products	321293,321860
30 Point inspection	JET 30 Point
Carriage Travel (In.)	72-1/2
Compound Slide Travel (In.)	5-1/2
Drive	Geared Head
End User Sellable	No
Item Display Order	9.0000
Length of Gap (In.)	8
Max Tool Size (In.)	1-1/4 x 1-1/4
Motor (HP)	10 HP, 230/460, 3 Ph
Number of Inch Threads	48.0000
Number of Longitudinal and Cross Feed Rates	65
Number of Metric Threads	22.0000
Number of Spindle Speeds	12
Overall Dimensions (L x W x H) (In.)	138 x 43 x 57
Prop 65	Cancer and Reproductive Harm
Range of Cross Feeds (IPR)	.010 - .0404
Range of Inch Threads (TPI)	2-30
Range of Longitudinal Feeds (IPR)	.0023 - .0937
Range of Metric Threads	1 - 14
Range of Spindle Speeds (RPM)	36 - 1,600
Size (English United States, Ecommerce)	26 x 80
Spindle Bore (In.)	4-1/8
Spindle Mount (English United States, Ecommerce)	D1-8
Spindle Taper with Sleeve (English United States, Ecommerce)	MT-5
Steady Rest Capacity (In.)	Small 25/32 - 4-29/32, Large 3-15/16 - 9-7/16
Style (Type)	Engine - Large Spindle Bore
Swing Over Bed (In.)	26
Swing Over Cross Slide (In.)	16-1/2
Swing Through Gap (In.)	34
Tailstock Spindle Travel (In.)	6
Taper in Tailstock Spindle	MT-5
Weight (Lbs.)	8514.0000
Weight (Lbs.) (Unit)	Pound
Width of Bed (In.)	16
