GHB-1340A W NMS300 DRO & TAK

JET Geared Head Bench Lathes feature an enclosed gearbox for smooth, quiet operation. Precision roller bearings support the hardened and ground spindle resulting in tight tolerances. Headstock is constantly oiled during operation to keep down needed maintenance and repair. Each JET Lathe comes loaded with features youve come to expect, all backed by the industry leading JET Two Year Warranty.

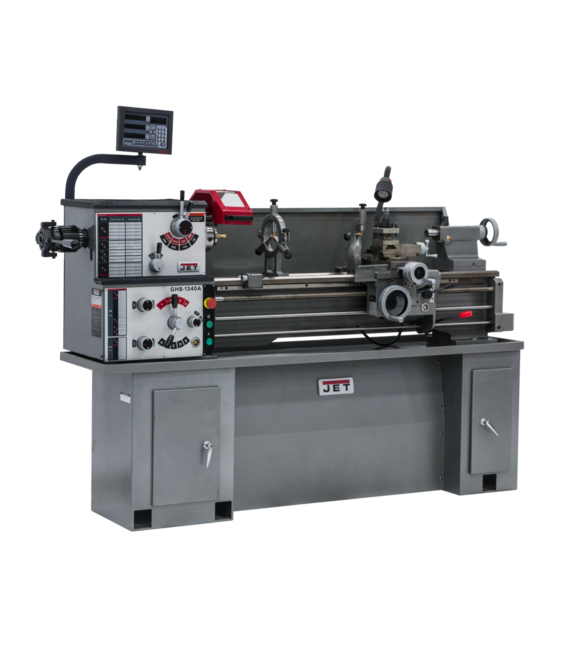

GHB-1340A Lathe With Newall NMS300 DRO With Taper Attachment

Features & Benefits

  • 6" 3-jaw direct mount chuck with top reversing jaw
  • Compound and cross slide have backlash elimination
  • Fast, easy speed changes
  • Hardened and ground gears are featured in the headstock and gearbox
  • Image shown with optional bench, p/n 321443AK
  • Independent lead screw and feed rod
  • Spindle actuation control is apron mounted
  • Tailstock may be offset for turning taper
  • Tolerance test certificate included
  • V-Way bed design is induction hardened and ground
SAP EAN Number Code (UPC)731325454079
Model NumberGHB-1340A
SAP Base Unit of MeasureEA
SAP Commodity Code8458.19.0020
SAP Country of OriginChina
Warranty2 Year
SAP Delivery PlantJNA
SAP Gross Weight1154
SAP Weight UnitLBS
SAP Net weight1154
SAP Weight UnitLBS
SAP Transportation GroupLTL
Carriage Travel (In.)35
Compound Slide Travel (In.)2-11/16
DriveGeared Head
End User SellableNo
Item Display Order176.0000
Length of Gap (In.)8
Max Tool Size (In.)5/8 x 5/8
Motor (HP)2 HP, 230V, 1Ph
Number of Inch Threads38.0000
Number of Longitudinal and Cross Feed Rates40
Number of Metric Threads23.0000
Number of Spindle Speeds8
Overall Dimensions (L x W x H) (In.)79 x 28-1/2 x 30
Prop 65Cancer and Reproductive Harm
Range of Cross Feeds (IPR).0006 - .0130
Range of Inch Threads (TPI)3-1/2 - 80
Range of Longitudinal Feeds (IPR).0018 - .0374
Range of Metric Threads.45 - 10
Range of Spindle Speeds (RPM)70 - 2,000
Size (English United States, Ecommerce)13 x 40
Spindle Bore (In.)1-3/8
Spindle Mount (English United States, Ecommerce)D1-4
Spindle Taper with Sleeve (English United States, Ecommerce)MT-5 (MT-3)
Steady Rest Capacity (In.)2-3/4
Style (Type)Bench - Geared Head
Swing Over Bed (In.)13
Swing Over Cross Slide (In.)7-25/32
Swing Through Gap (In.)18-3/4
Tailstock Spindle Travel (In.)3-3/4
Taper in Tailstock SpindleMT-3
Weight (Lbs.)1154.0000
Weight (Lbs.) (Unit)Pound
Width of Bed (In.)7-3/8

Part #: 323115

Price: $15,199.00
